Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A105Method of Operation:

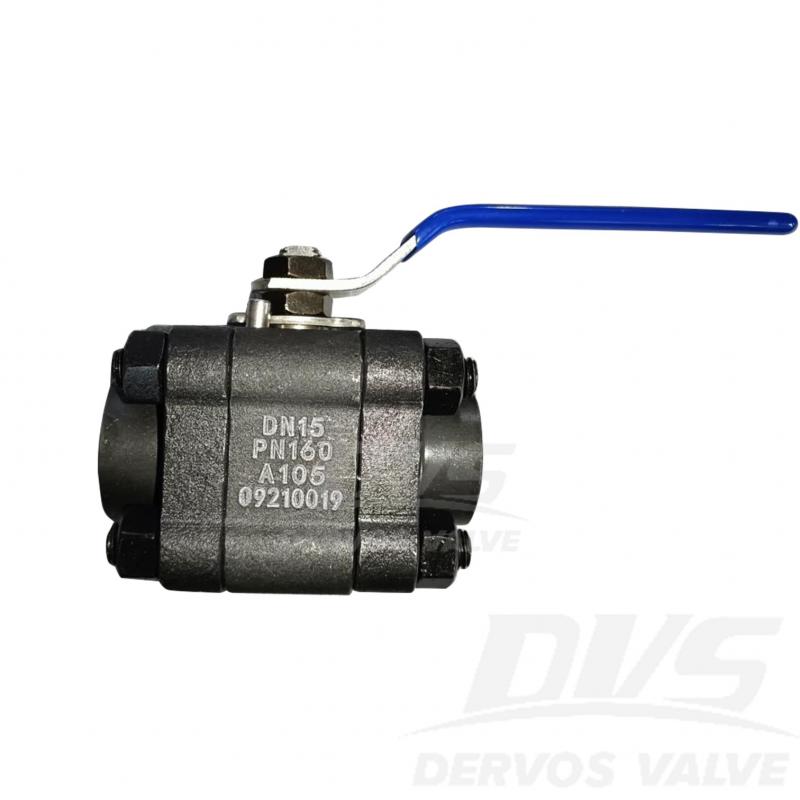

LEVER OP.1/2" PN160 Floating Ball Valve is made according to ASME B16.34 standard. The valve body is made of A105. It has the structural characteristics of Floating Ball, Full Bore, Fire-Safe & Anti-Static. Its connection mode is FNPT. And it has LEVER OP. operation mode.
|
Type |
Floating Ball Valve |
|
Size |
1/2” |
|
Pressure |
PN160 |
|
Connection |
NPT |
|
Operation |
LEVER OP. |
|
Body Material |
A105 |
|
Design Norm |
ASME B16.34 |
|
End to End |
MANUFACTURER STANDARD |
|
End connection |
NPT |
|
Test & Inspection Code |
API 598 |
|
Temperature |
-29 ~ 200°C |
|
Applicable Medium |
Water, Oil and Gas |
1.3 Pcs Forged Steel Floating Ball Valve 1/2" PN160 A105 provides high strength and reliable tight shut-off, ideal for high-pressure small-bore pipeline systems (floating ball valve PN160 A105).
2.3 Piece A105 Floating Ball Valve ensures easy maintenance and flexible installation with compact design, suitable for industrial and oil & gas applications (1/2 inch forged steel ball valve PN160).
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
