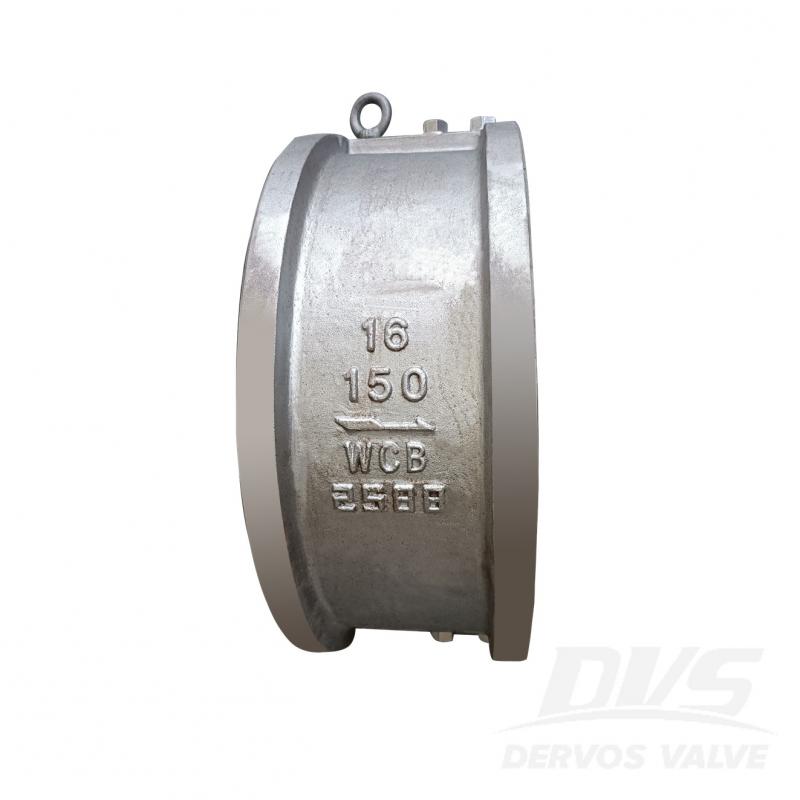

16" 150LB wafer check valve is made according to API 594 standard. The valve body is made of WCB. It has the structural characteristics of double disc and built-in type. Its connection mode is wafer.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A216 WCBProduct Description
Type |
Wafer Check Valve |
Size |
16" |
Pressure |
150LB |
Connection |
Wafer |
Body Material |
A216 WCB |
Design Norm |
API 594 |
Pressure-temperature |
ANSI B16.34 |
Flange Ends |
ANSI B16.5 |
Face to Face Dimension |
API 594 |
Test & Inspection Code |
API 598 |
Applicable Medium |
Water, Oil and Gas |
Features
1. The valve disc has a short stroke and sensitive action. Low impact force when closing the valve, good sealing performance;
2. Smooth flow channels with low fluid resistance. Both horizontal and vertical pipelines can be used for easy installation.

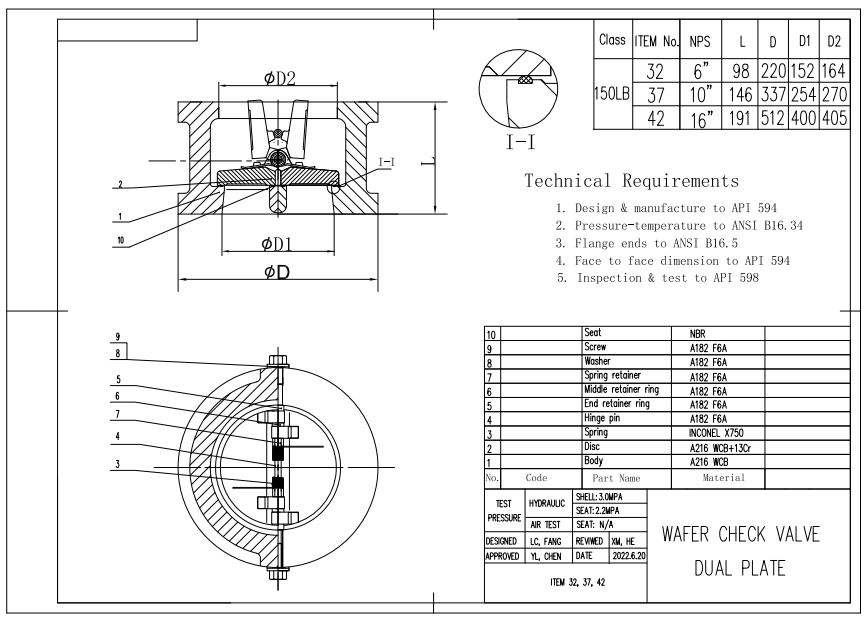

Technical Drawing

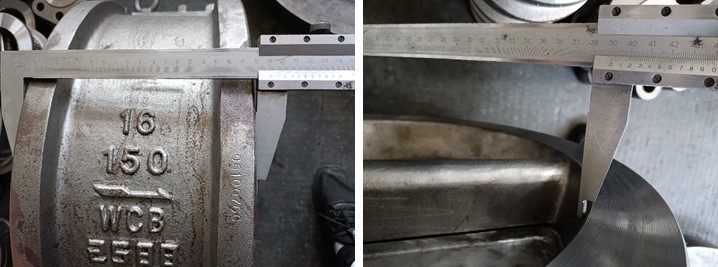

Dimension Checking

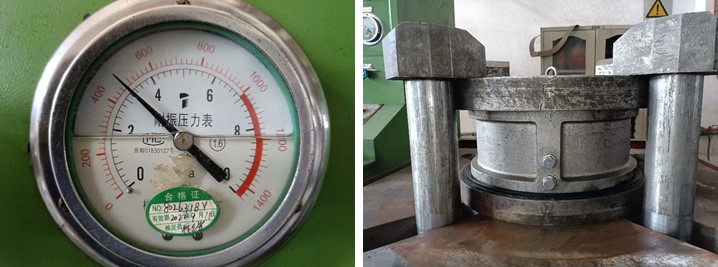

Pressure Testing

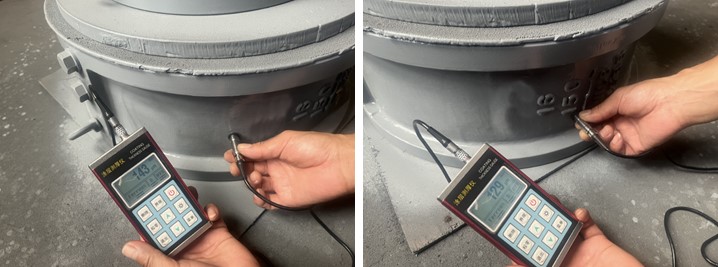

Painting

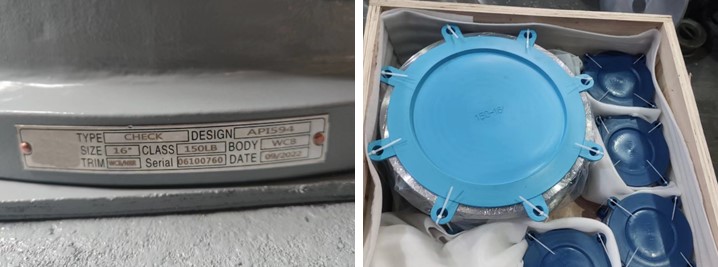

Nameplate & Packing

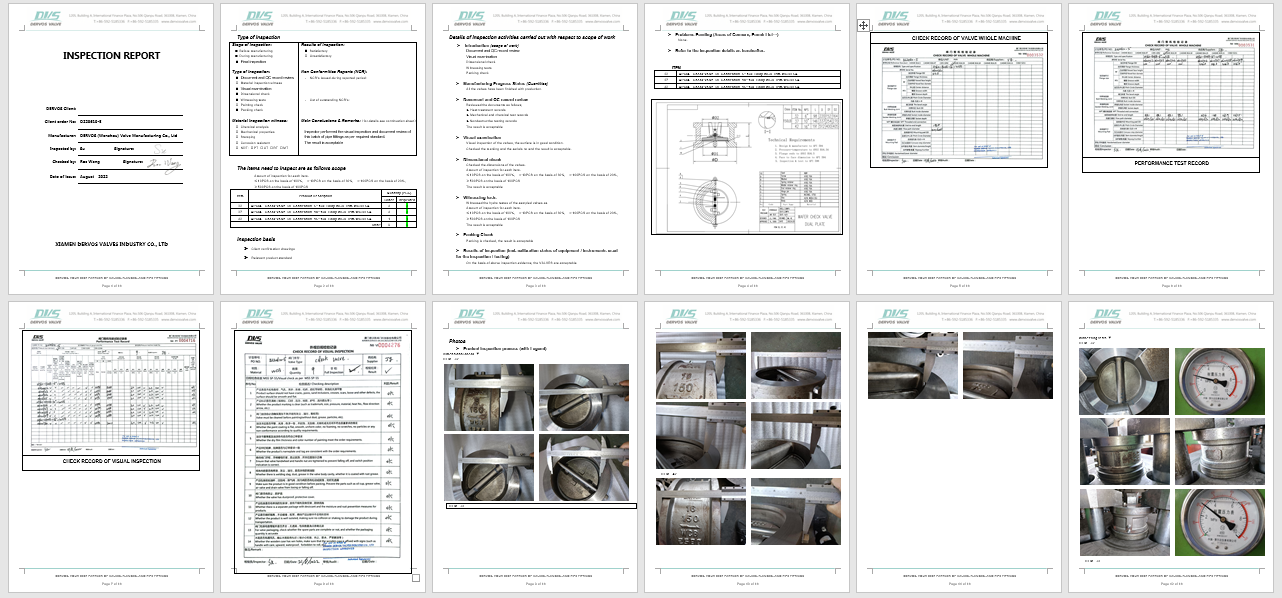

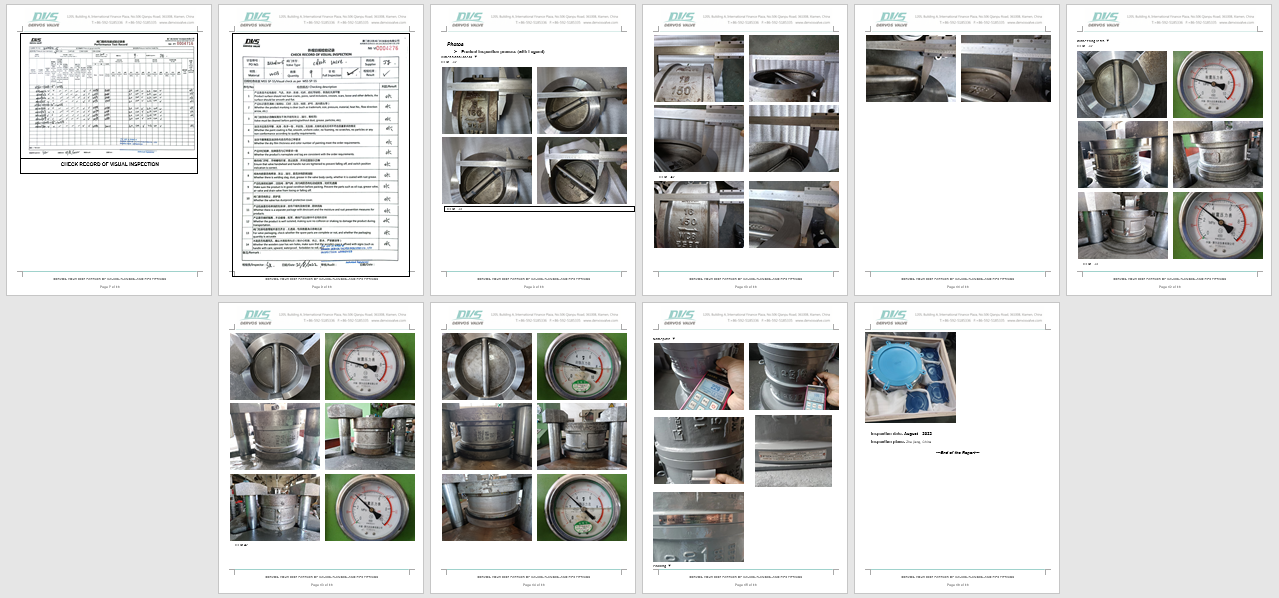

Inspection report
