10" 150LB wafer check valve is made according to API 594 standard. The valve body is made of A216 WCB+316. It has the structural characteristics of double disc and wafer type. Its connection mode is Lug.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A216 WCB+316Product Description
Type |
Wafer Lug Type Check Valve |
Size |
10" |
Pressure |
150LB |
Connection |
Lug |
Body Material |
A216 WCB+316 |
Design Norm |
API 594 |
Pressure-temperature |
ANSI B16.34 |
Flange Ends |
ANSI B16.5 |
Face to Face Dimension |
API 594 |
Test & Inspection Code |
API 598 |
Applicable Medium |
Water, Oil and Gas |
Features
1. Compact structure, suitable for installation in limited space, occupying less space in pipeline systems;
2. It has high reliability and durability, reducing the need for maintenance and replacement.

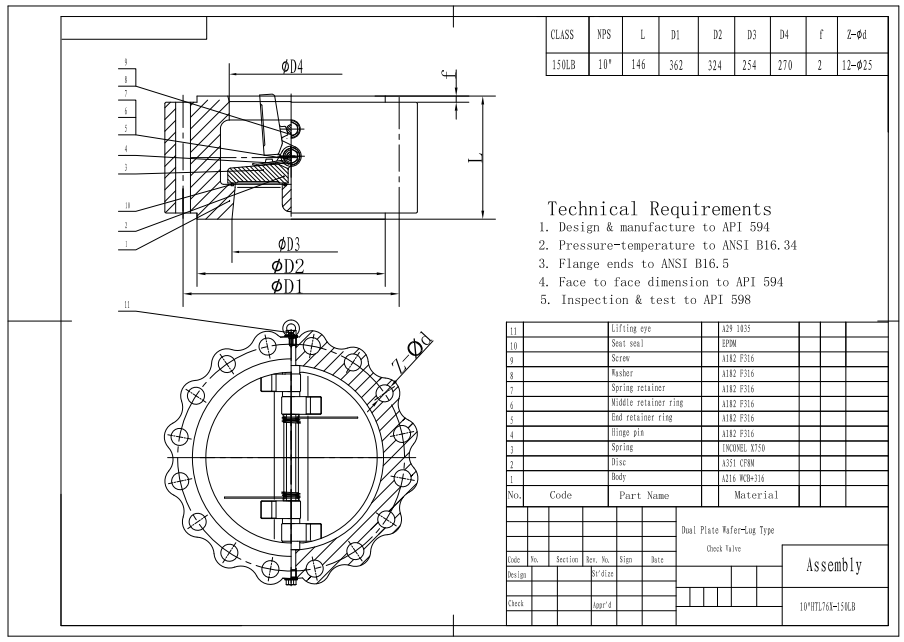

Technical Drawing

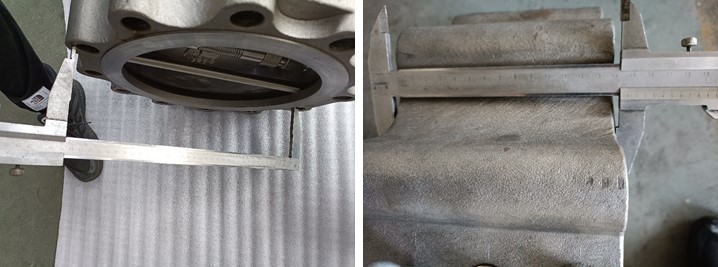

Dimension Checking

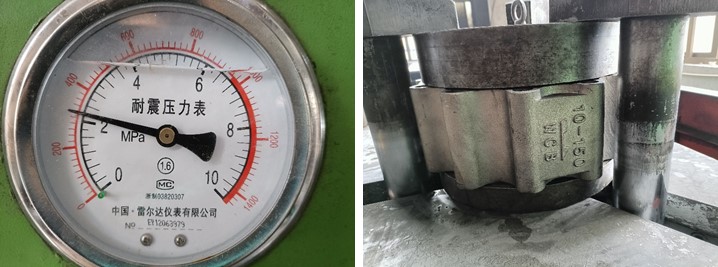

Pressure Testing

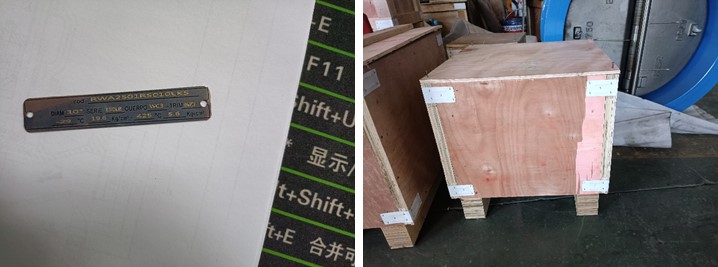

Nameplate & Packing

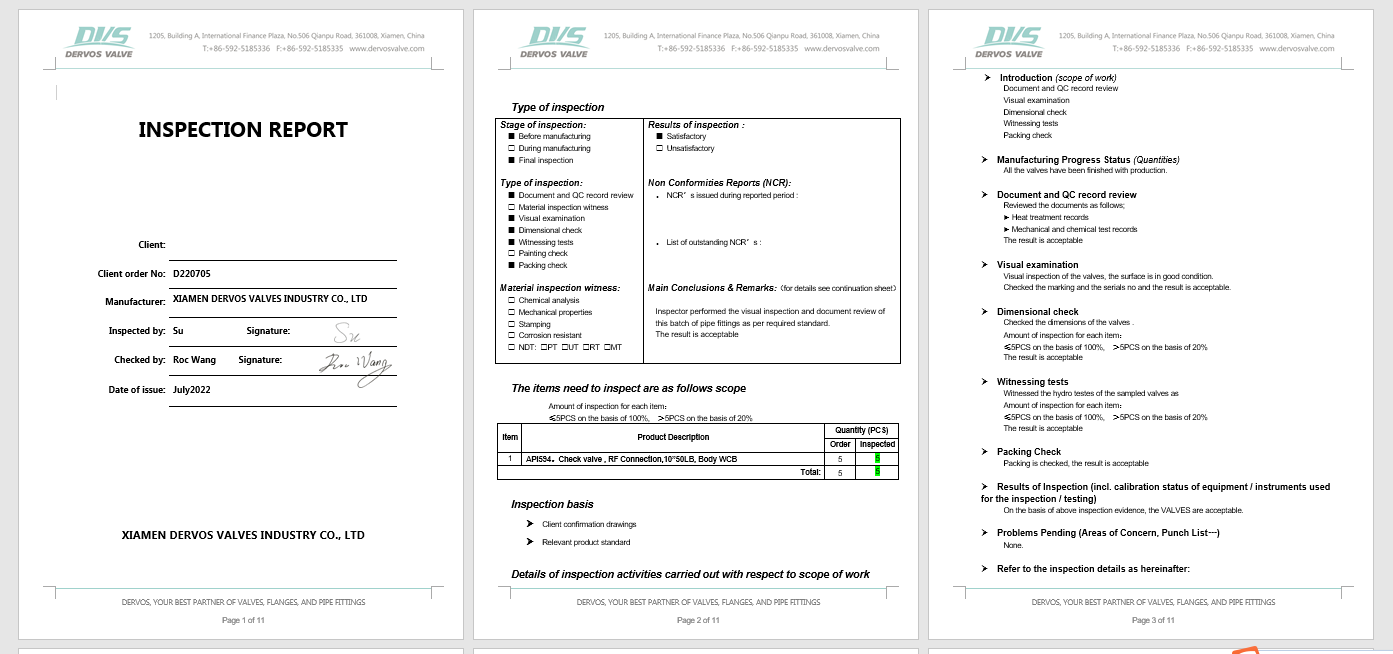

Inspection report
