Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A105Method of Operation:

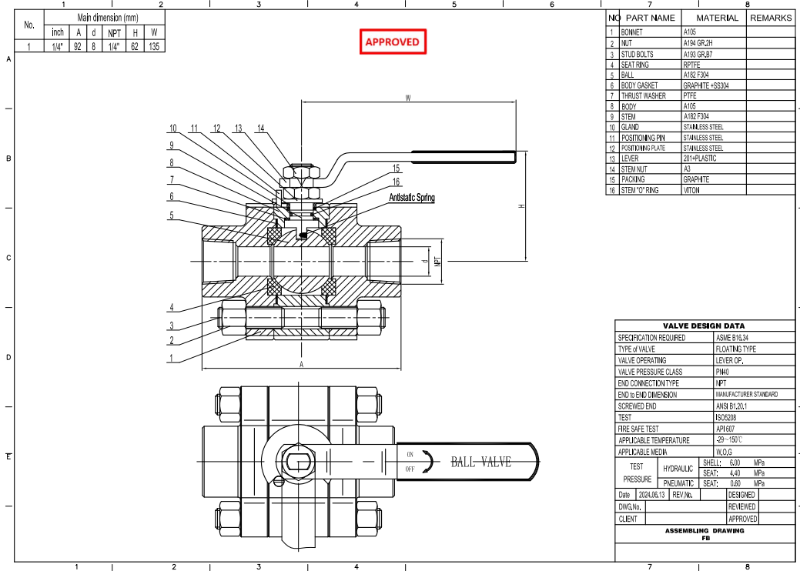

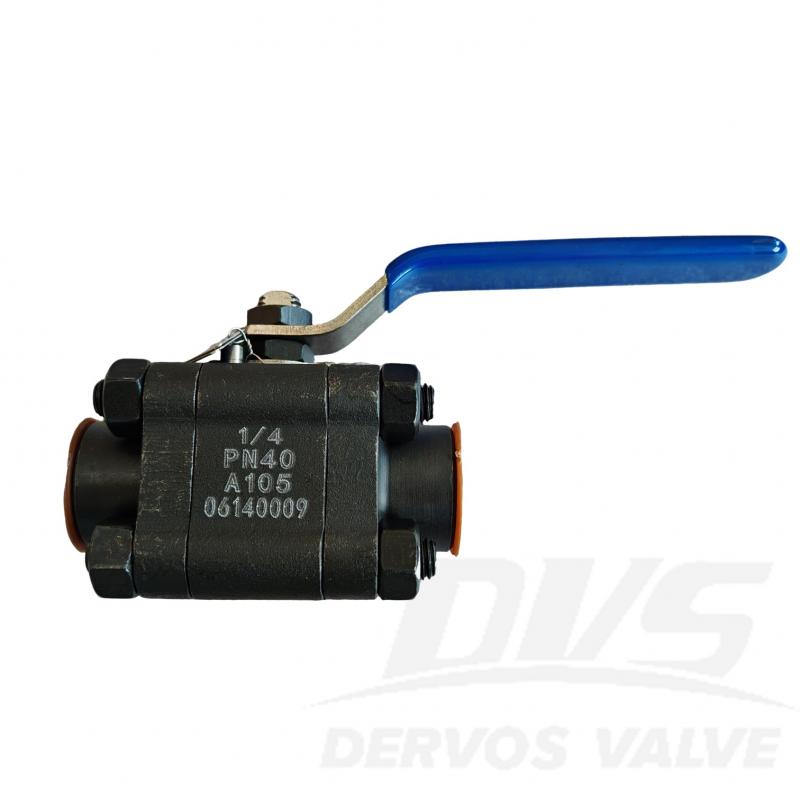

hand wheel1/4” PN40 Forged Steel Floating Ball Valve is made according to ASME B16.34 standard. The valve body is made of A182 F304. It has the structural characteristics of Floating Ball, Full Port, Fire-safe & Anti-static. Its connection mode is FNPT. And it has hand wheel operation mode.
|
Type |
Forged Steel Floating Ball Valve |
|
Size |
1/4” |
|
Pressure |
PN40 |
|
Connection |
FNPT |
|
Operation |
Hand wheel |
|
Body Material |
A105 |
|
Design Norm |
ASME B16.34 |
|
Face to Face |
MFG |
|
Screwed End |
ASME B1.20.1 |
|
Test & Inspection Code |
ISO5208 |
|
Temperature |
-29 ~ 150°C |
|
Applicable Medium |
Water, Oil and Gas |
1.Forged from A105 carbon steel, offering high strength and reliable performance for PN40 pressure applications.
2.Floating ball design with FNPT connection and ASME B16.34 compliance ensures tight sealing and smooth operation.
Forged Steel Floating Ball Valve
