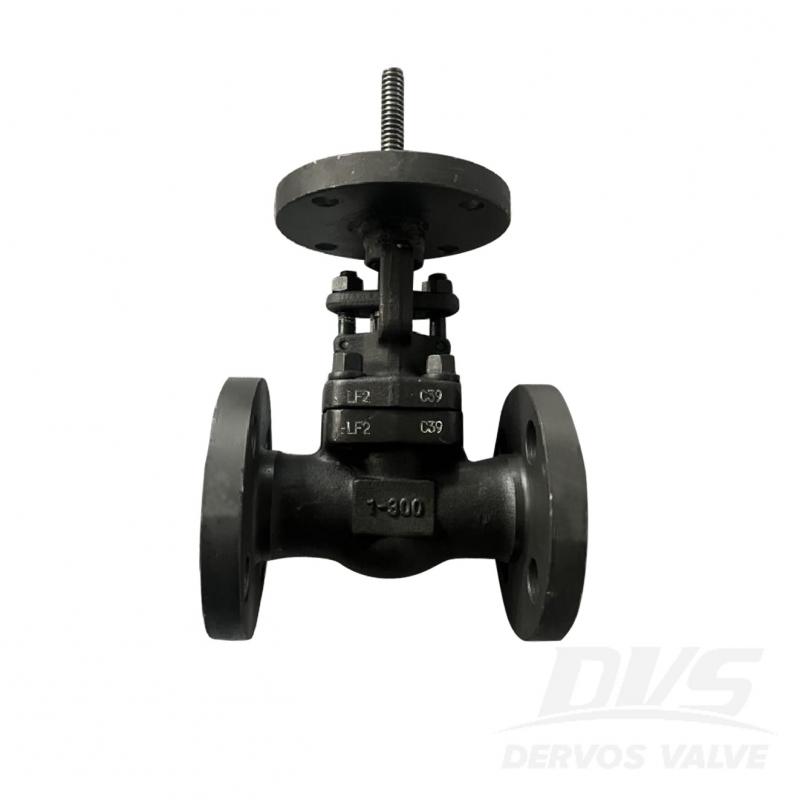

1" 300LB gate valve is made according to API 602 and ASME B16.34 standard. The valve body is made of A350-LF2. It has the structural characteristics of bolt cover, exposed rod, OS&Y, reduced diameter. Its connection mode is RF integral flange. And it has polished rod operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A350-LF2Method of Operation:
Polished RodProduct Description
Type |
Gate Valve |
Size |
1" |
Pressure |
300LB |
Connection |
RF Integral Flange |
Operation |
Polished Rod |
Body Material |
A350-LF2 |
Design Norm |
API 602, ASME B16.34 |
Face to Face |
ASME B16.10 |
Flange Dimension |
ASME B16.5 |
Material |
AISI/ASTM |
Test & Inspection Code |
API 598 |
Temperature |
-29 ~ 300°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. Effortless opening and closing, long service life, and wide applicability;
2. Multiple optional materials, strong manufacturing process, and high cost performance in production.

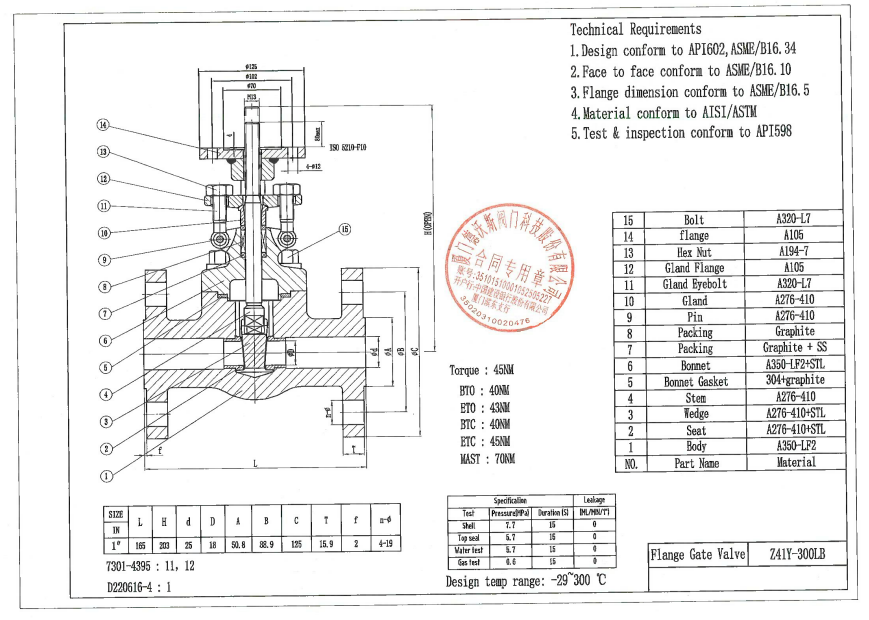

Technical Drawing

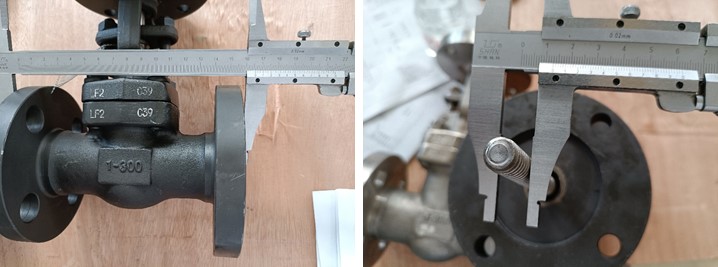

Dimension Checking

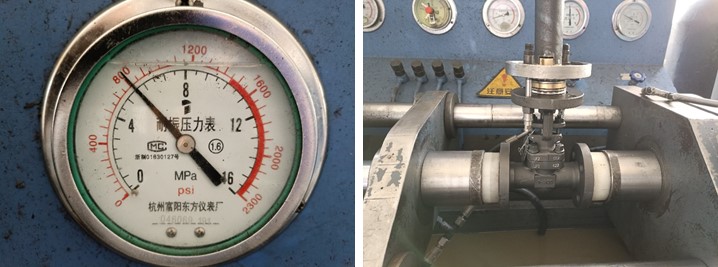

Pressure Testing

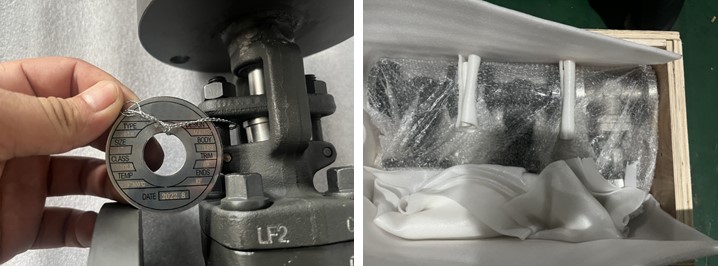

Nameplate & Packing

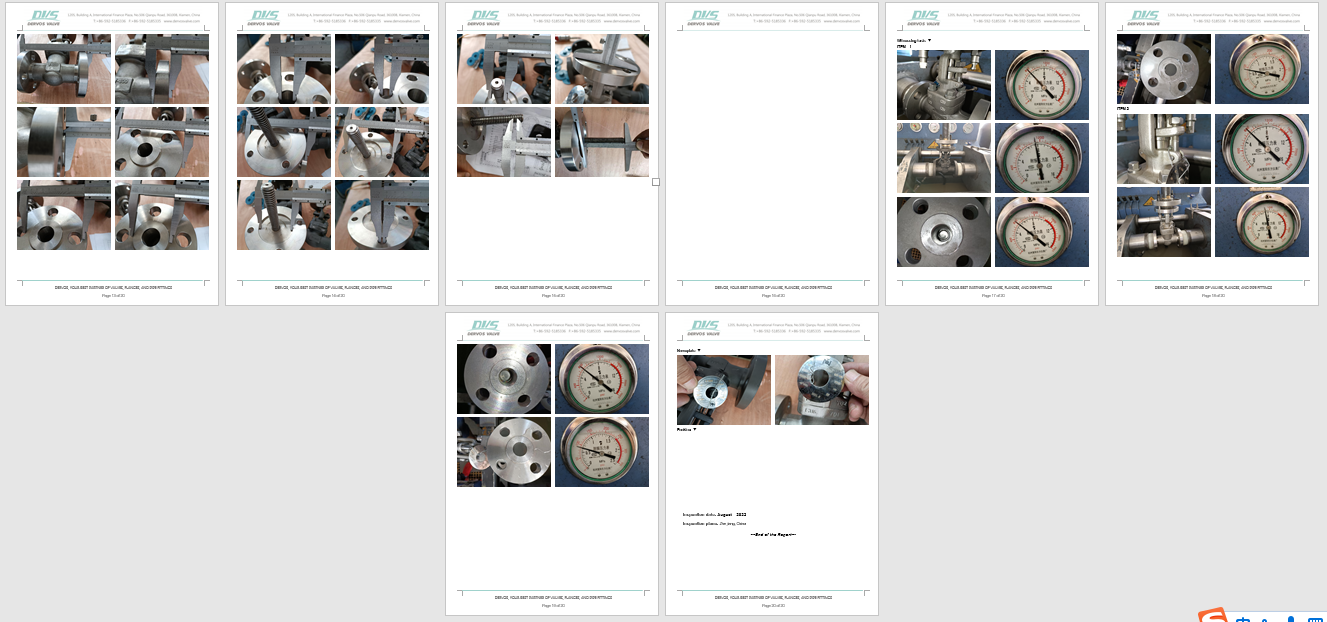

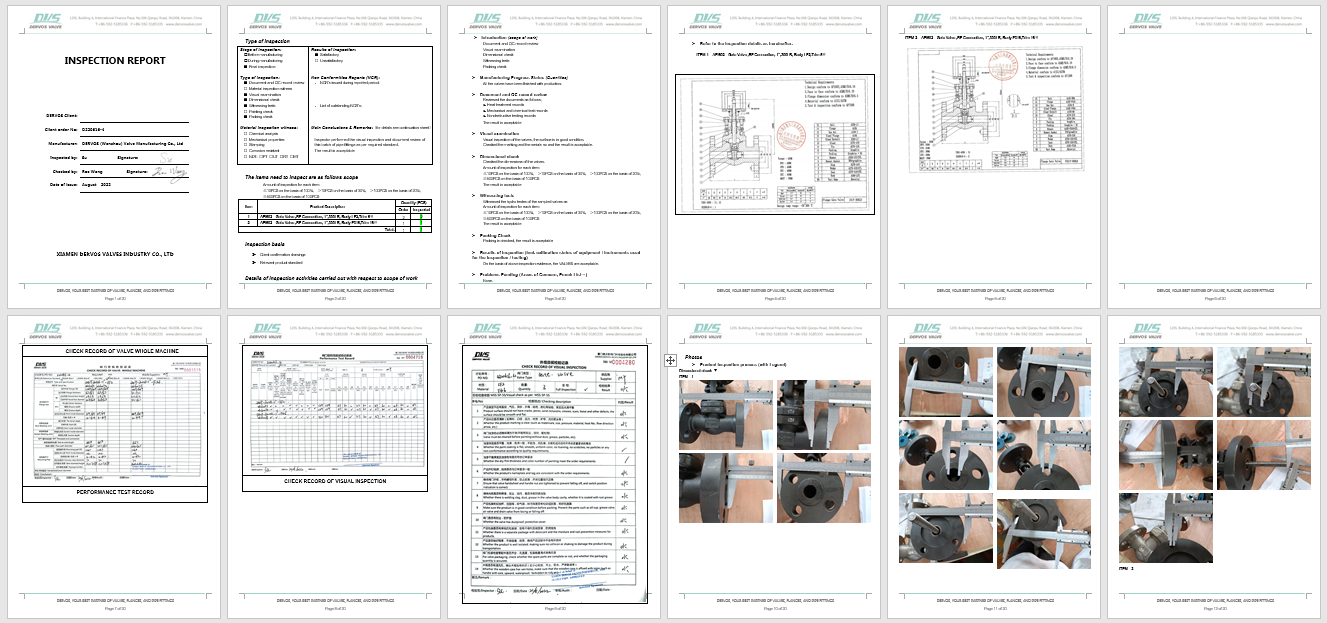

Inspection report
