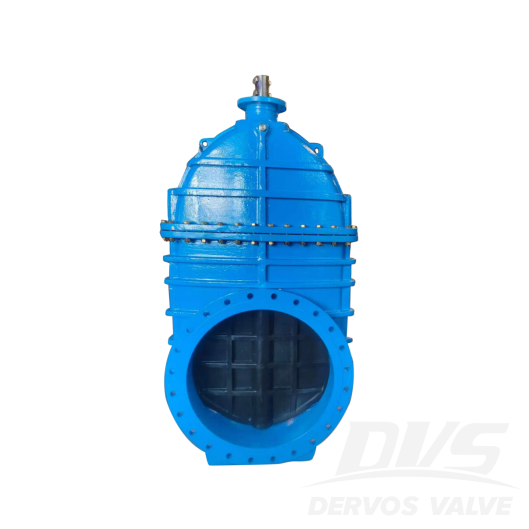

DN800 PN10 gate valve is made according to DIN standard. The valve body is made of GGG50. It has the structural characteristics of F4 drinking water soft gate. Its connection mode is RF, and it has gear operation.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
GGG50Method of Operation:
G.O.Product Description
|
Type |
Gate Valve |
|
Size |
DN800 |
|
Pressure |
PN10 |
|
Connection |
RF |
|
Operation |
G.O. |
|
Body Material |
GGG50 |
|
Wedge |
GGG50/BS2494 |
|
Stem |
SS420 |
|
Design Norm |
DIN |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Low flow resistance, high height, and long opening and closing time.
2. Low flow resistance, effortless opening and closing, and less prone to water hammer phenomenon.

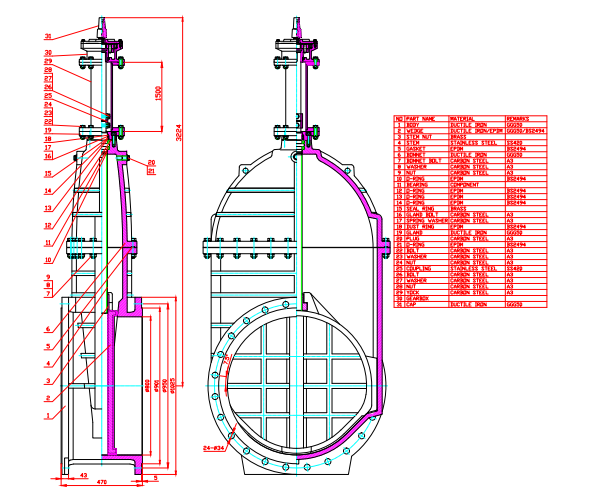

Technical Drawing

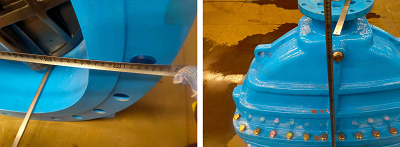

Dimension Checking

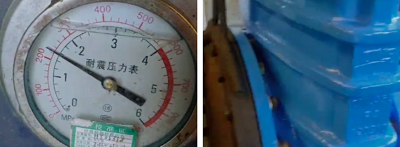

Pressure Testing

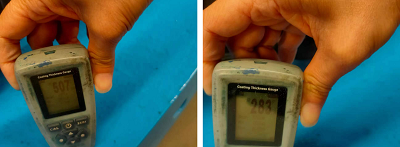

Painting

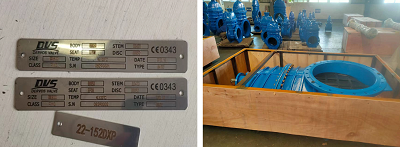

Nameplate & Packing

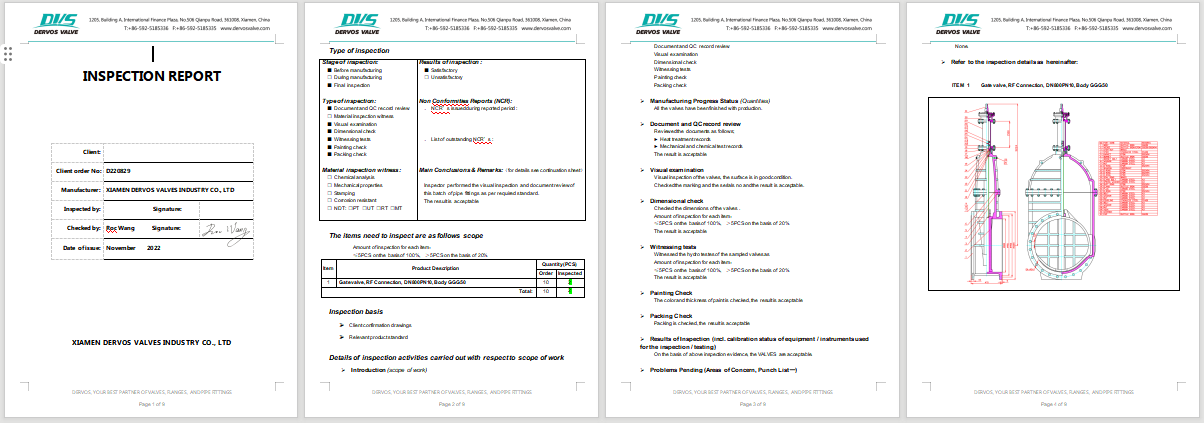

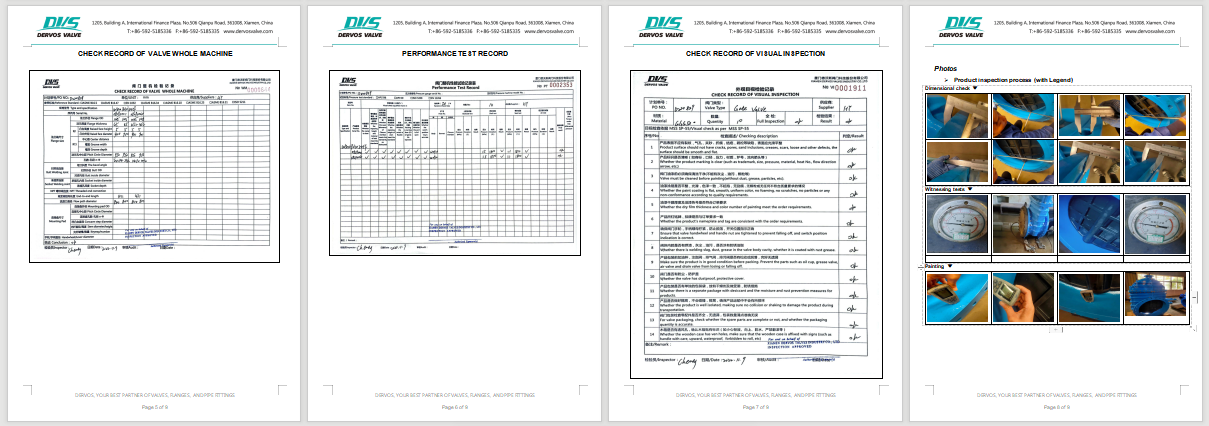

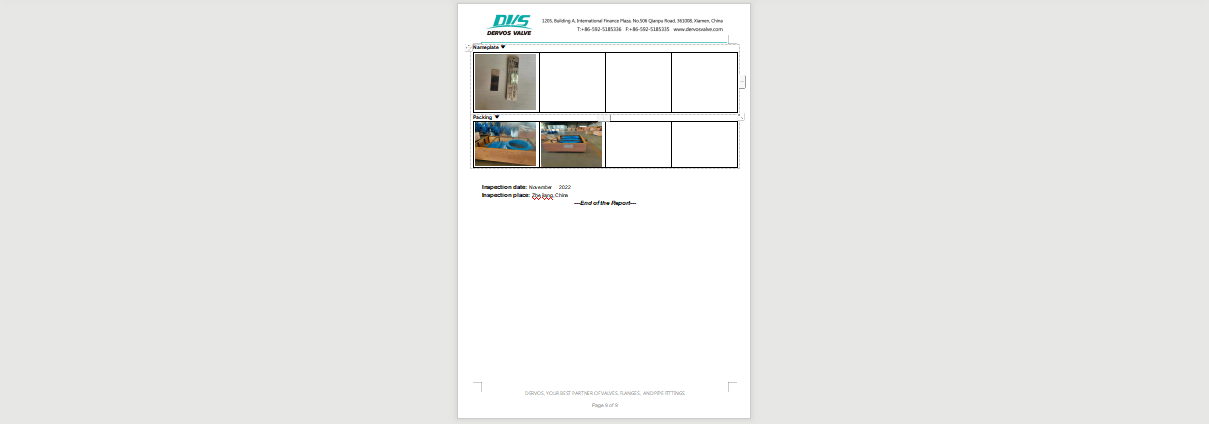

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
