Butterfly Valve
加载中...

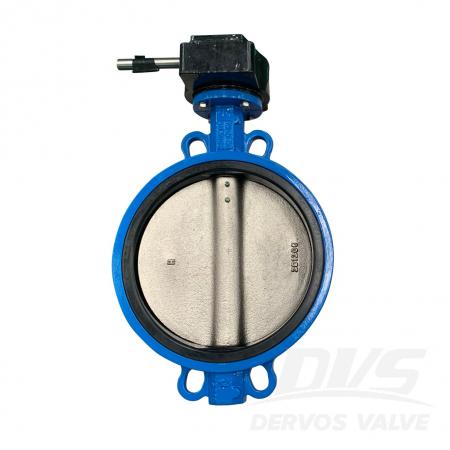

DN300 PN10 Concentric Butterfly Valve FF API609


DN300 PN10 butterfly valve is made according to API 609 standard. The valve body is made of GGG40. It has the structural characteristics of centerline and structural length of 78mm. Its connection mode is FF. And it has turbine operation mode.


  • Payment:

    30% when order confirmed, 70% before shipment
  • Product Origin:

    China
  • Color:

    Customization
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    GGG40
  • Method of Operation:

    Turbine Operation
Inquiry now
Product Detail

Product Description

Type

Butterfly Valve

Size

DN300

Pressure

PN10

Connection

FF

Operation

Turbine Operation

Body Material

GGG40

Design Norm

API 609

Face to Face

EN558-1

End Flange

EN1092 / ANSI B16.5a

Top Flange

ISO5211

Test & Inspection Code

EN12266

TEMP.

≤120℃

Applicable Medium

Water, Oil and Gas

Features

1. Simple structure and convenient manufacturing;

2. The sealing performance is reliable and not easy to wear, which increases the service life of the valve.

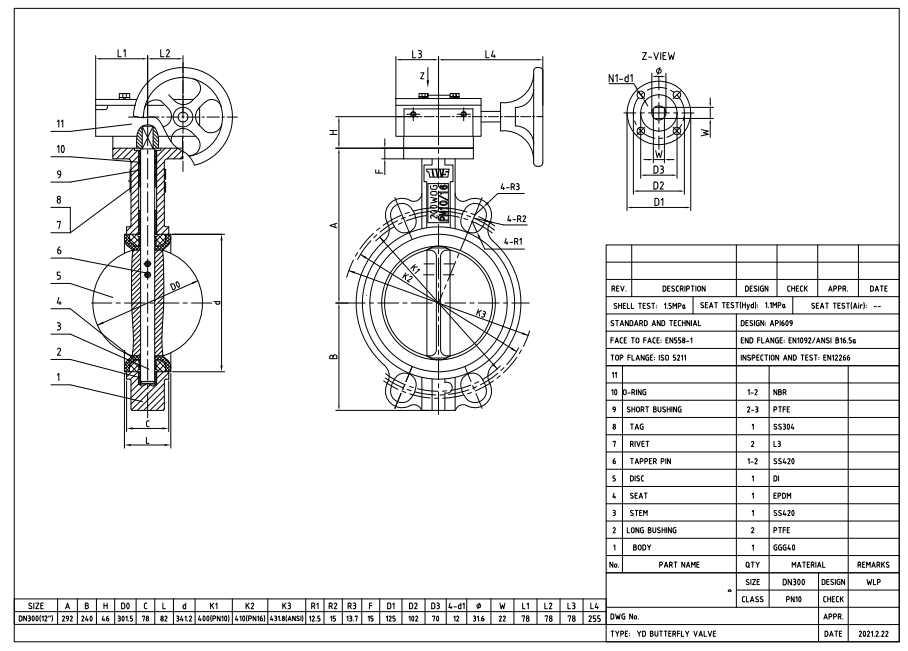

Technical Drawing

Dimension Checking

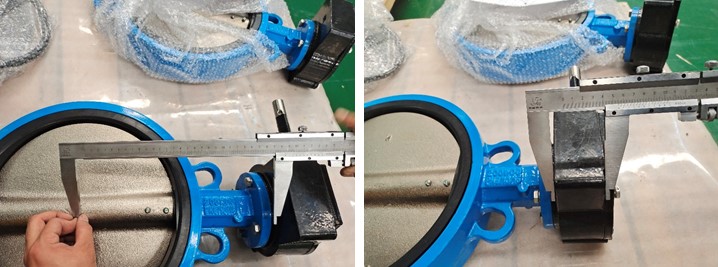

Pressure Testing

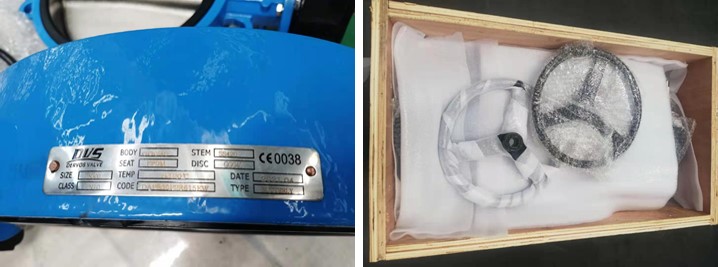

Nameplate & Packing

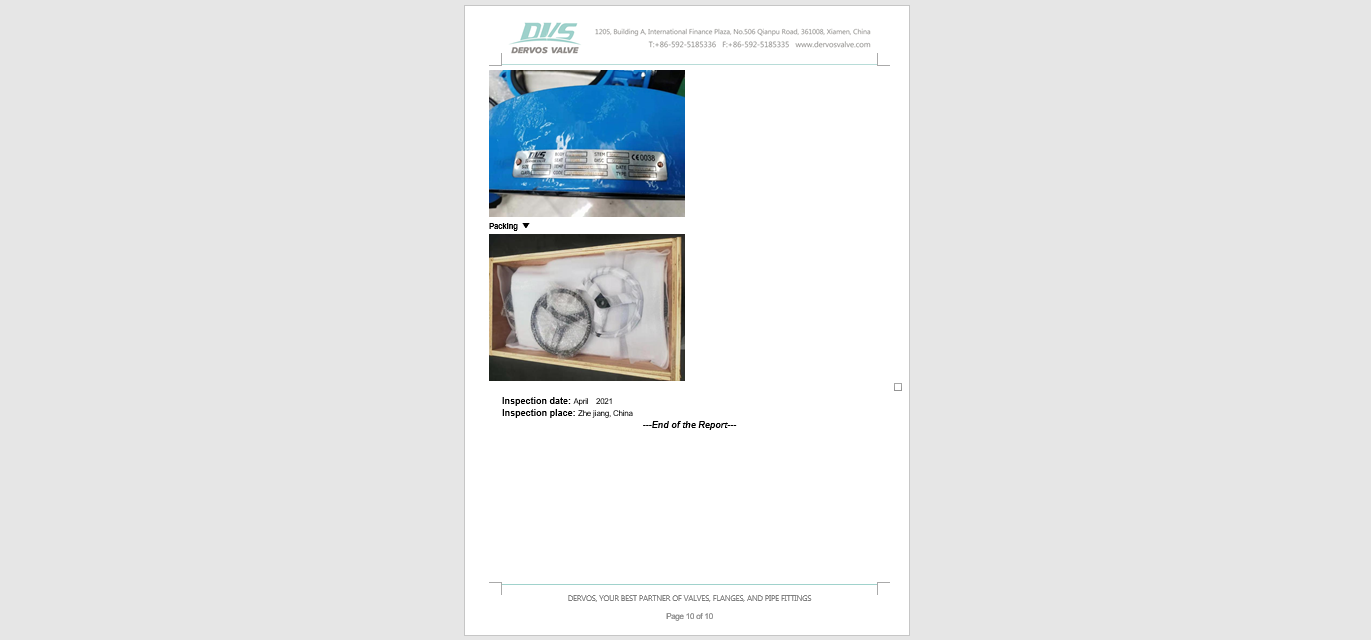

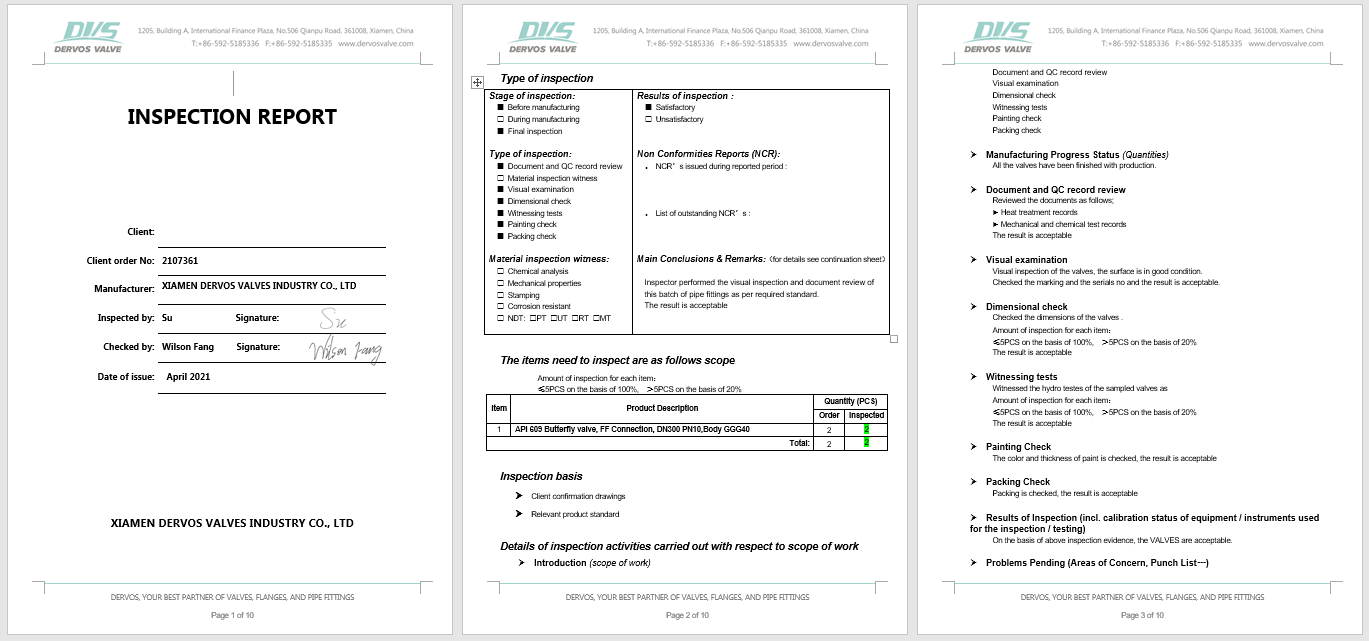

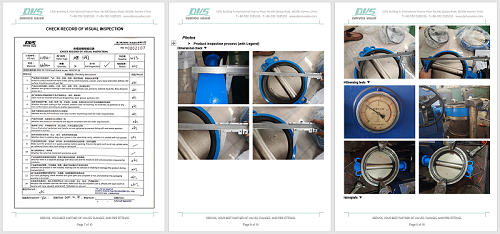

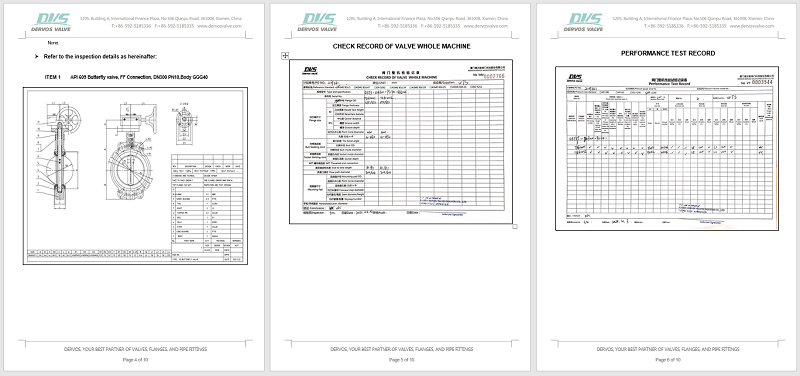

Inspection report

Leave A Message
