Payment:
30% T/T When Order, 70% T/T Before ShipmentColor:
CustomizationShipping Port:
Shanghai ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A105Method of Operation:

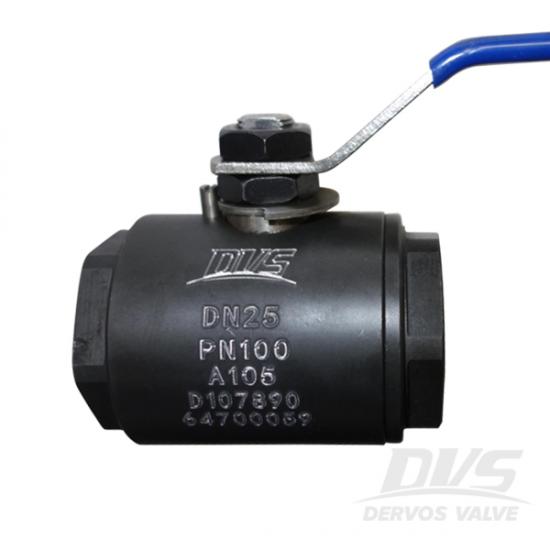

LeverDN25 PN100 Forged Steel A105 NPT Connection Way 2 Pieces Construction Full Pore Lever Operation Floating Ball Fire Safety Body and Bonnet A105 Ball a182 F304 Seat Ring PTFE Stem A182 F304 Stem O Ring Viton Packing Graphite Gland Stainless Steel Design and Manufacture ASME B16.34 Face to Face Design Manufacture Standard Manufacture Standard Screw and Dimension ANSI B1.20.1 Inspection and Test API598 Fire Safety Design API 607
Quick Detail
Type |
Ball Valve |
Size |
DN25 |
Pressure |
PN100 |
Construction |
2 Pieces |
Connection |
NPT |
Operation Mode |
Lever |
Body Material |
A105 |
Cover |
A105 |
Design & Manufacture |
ASME B16.34 |
End to End |
ASME B16.10 |
End Connection |
ANSI B1.20.1 |

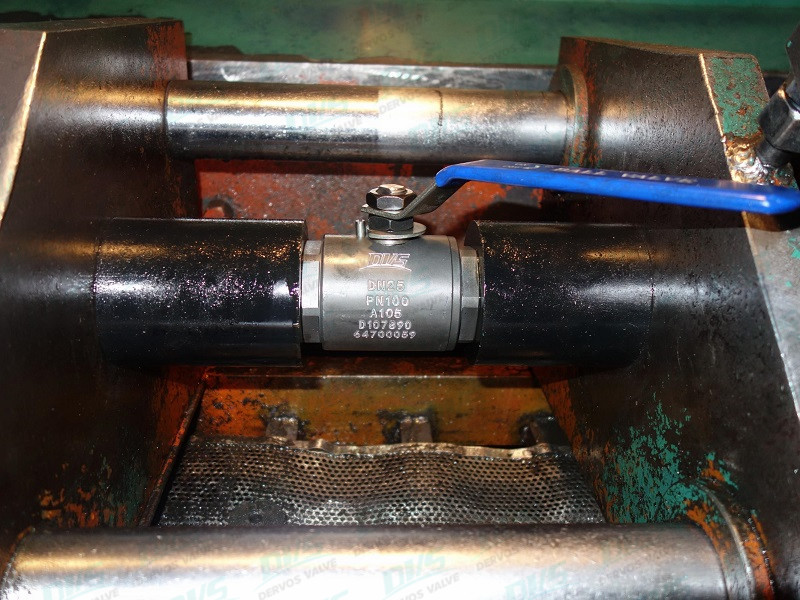

Inspection |
API 598 |
Temperature Range |
-29℃~+538℃ |
Medium |
Oil, Water, Gas |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
