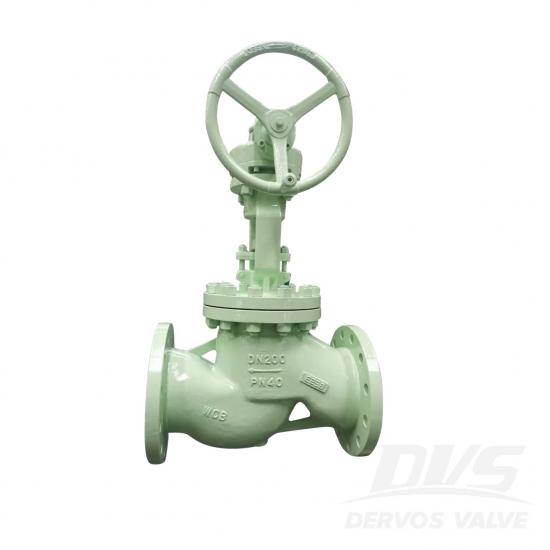

DN200 PN40 globe valve is made according to EN13709 standard. The valve body is made of ASTM A216 WCB+STL. It has the structural characteristics of straight through, bolted cover and structural length of 595mm. Its connection mode is EN1092-1 B1. And it has gear operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaMaterial:
ASTM A216 WCB+STLMethod of Operation:
G.OProduct Description
|
Type |
Globe Valve |
|
Size |
DN200 |
|
Pressure |
PN40 |
|
Connection |
EN1092-1 B1 |
|
Operation |
G.O |
|
Body Material |
ASTM A216 WCB+STL |
|
Design Norm |
EN13709 |
|
Face to Face Dimension |
Customer requirements |
|
Flange Dimension |
EN1092-1/B1 |
|
Test & Inspection Code |
EN12266-1/2 |
|
Temperature |
-29 ~ 425°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Wear resistance, high temperature resistance, corrosion resistance, good scratch resistance, and long service life;
2. During the opening and closing process, the friction between the sealing surfaces is small, relatively durable, easy to manufacture, and easy to maintain.

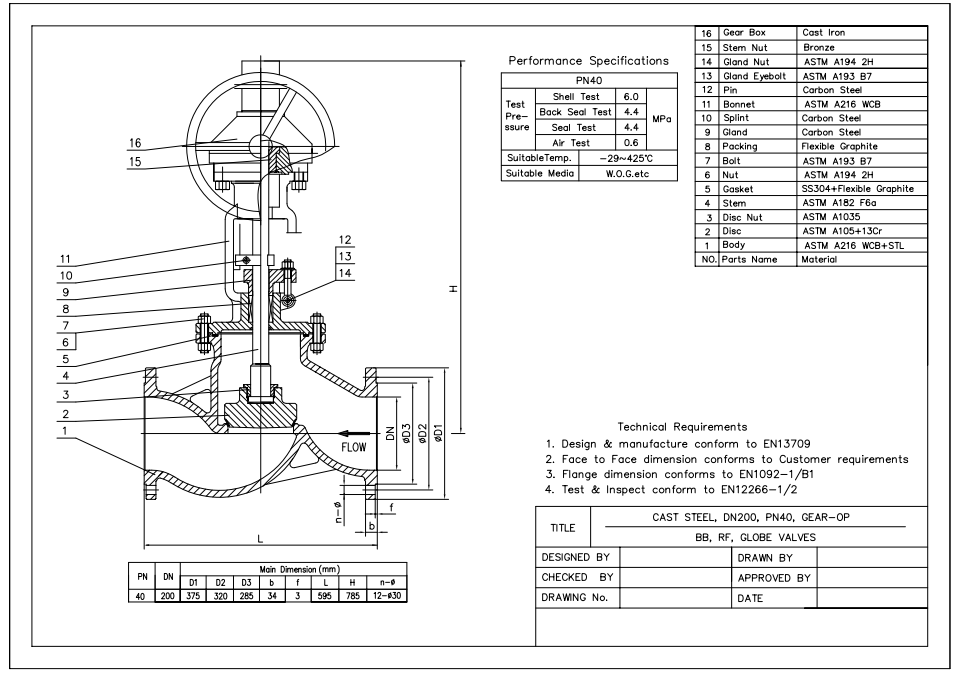

Technical Drawing

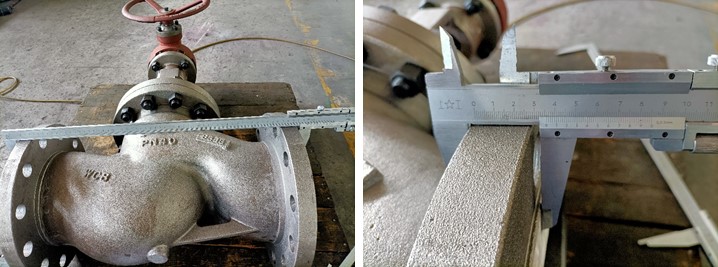

Dimension Checking

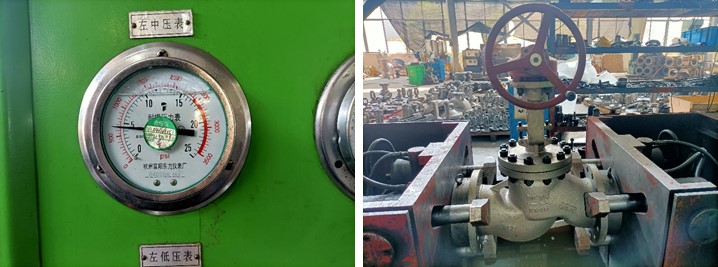

Pressure Testing

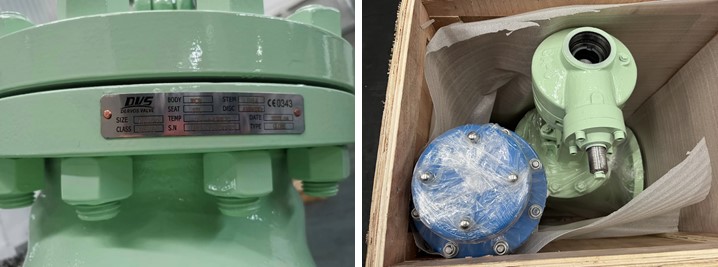

Nameplate & Packing

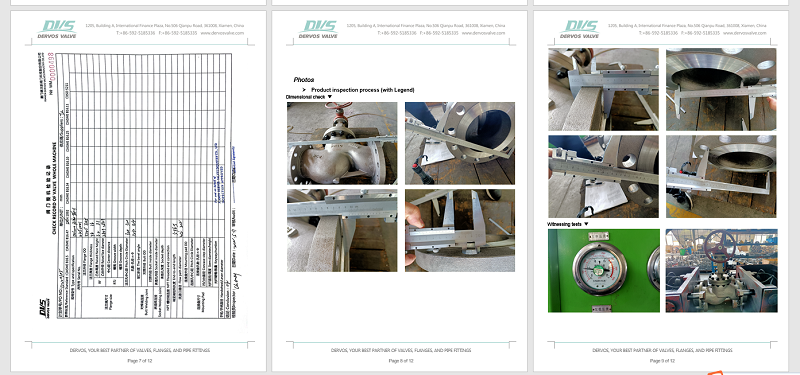

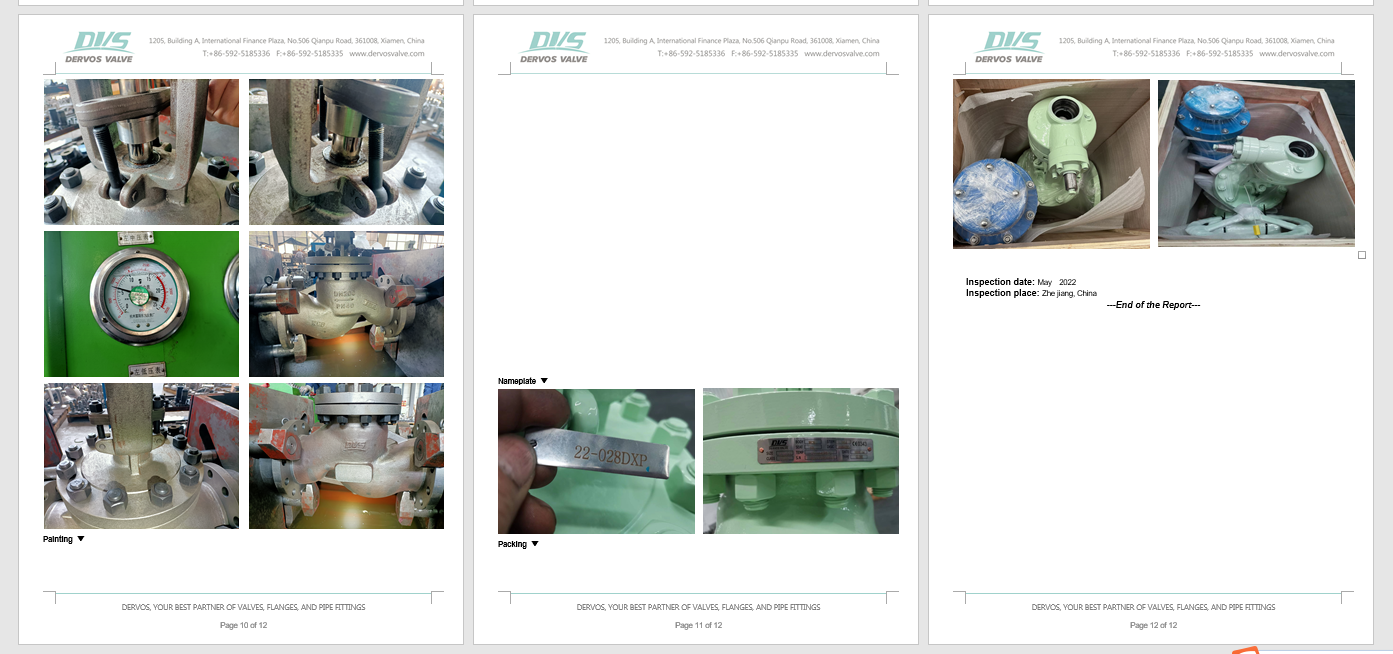

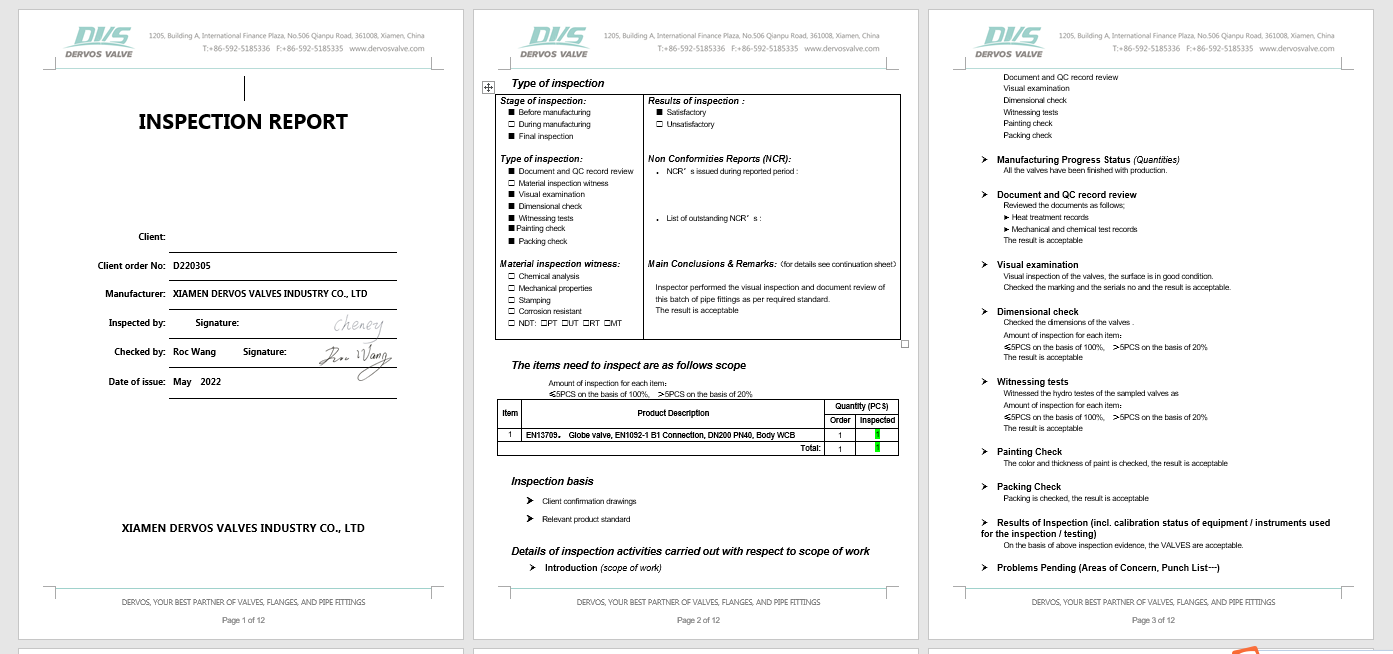

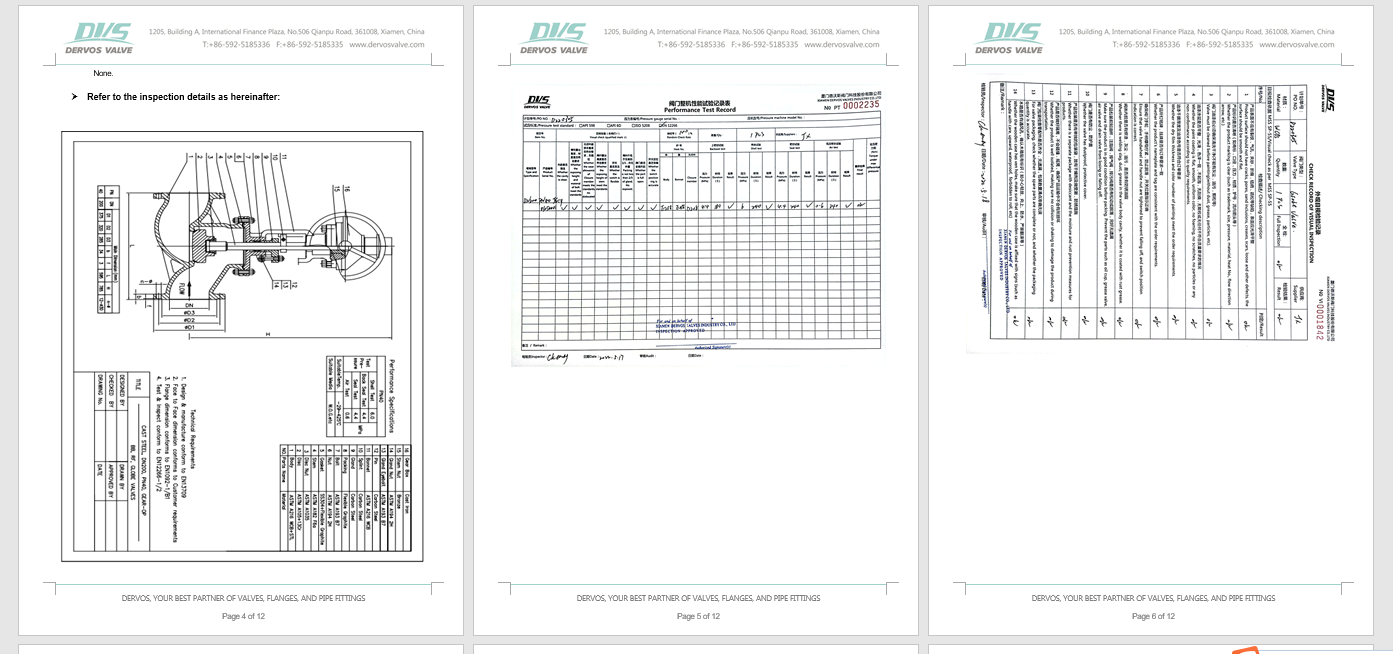

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
