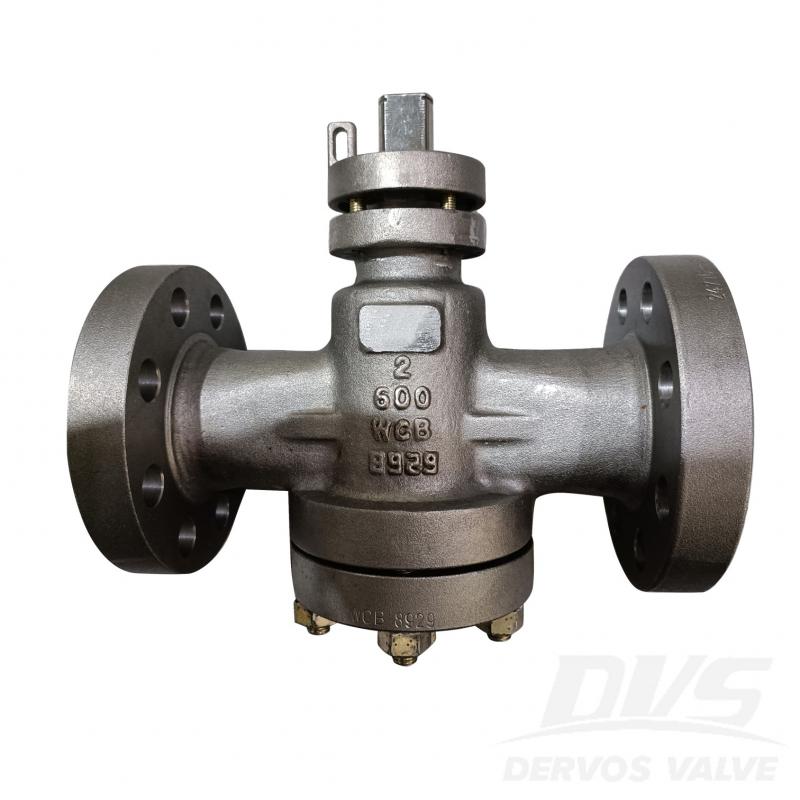

2" 600LB inverted pressure balanced lubricated plug valve is made according to API 6D standard. The valve body is made of A216 WCB. It has the structural characteristics of inverted pressure balance type, oil sealed. Its connection mode is RF. And it has Lever operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A216 WCBMethod of Operation:
LeverProduct Description
|
Type |
Lubricated Plug Valve |
|
Size |
2" |
|
Pressure |
600LB |
|
Connection |
RF |
|
Operation |
Lever |
|
Body Material |
A216 WCB |
|
Design Norm |
API 6D |
|
Face to Face Dimension |
ASME B16.10 |
|
Flange Dimension |
ASME B16.5 |
|
Pressure-Temperature |
ASME B16.34 |
|
Fire Safe |
API 6FA |
|
Test & Inspection Code |
API 598 |
|
Temperature |
≤ 80°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Due to the presence of pressure balancing devices, the valve requires less operating torque for opening and closing, making it easy to operate and less prone to jamming. Even under high-pressure conditions, it can be easily opened and closed, reducing the requirements for the driving device;
2. Most inverted pressure balanced plug valves have bidirectional sealing function, which can achieve reliable sealing in both forward and reverse directions of the medium, improving the safety and applicability of the valve.

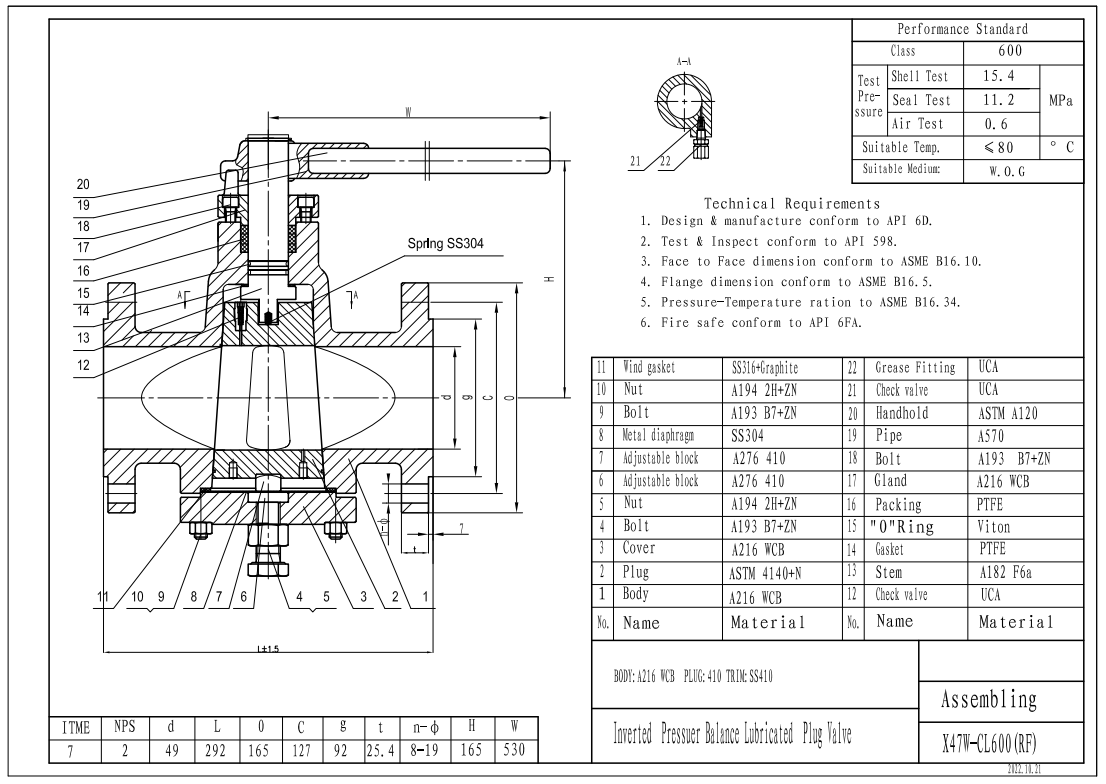

Technical Drawing
Dimension Checking

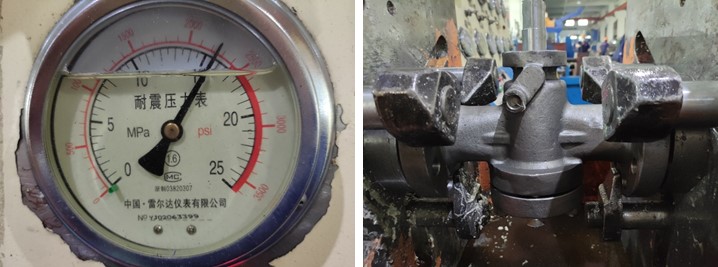

Pressure Testing

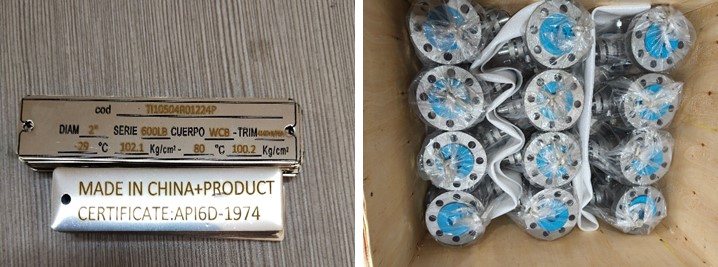

Nameplate & Packing

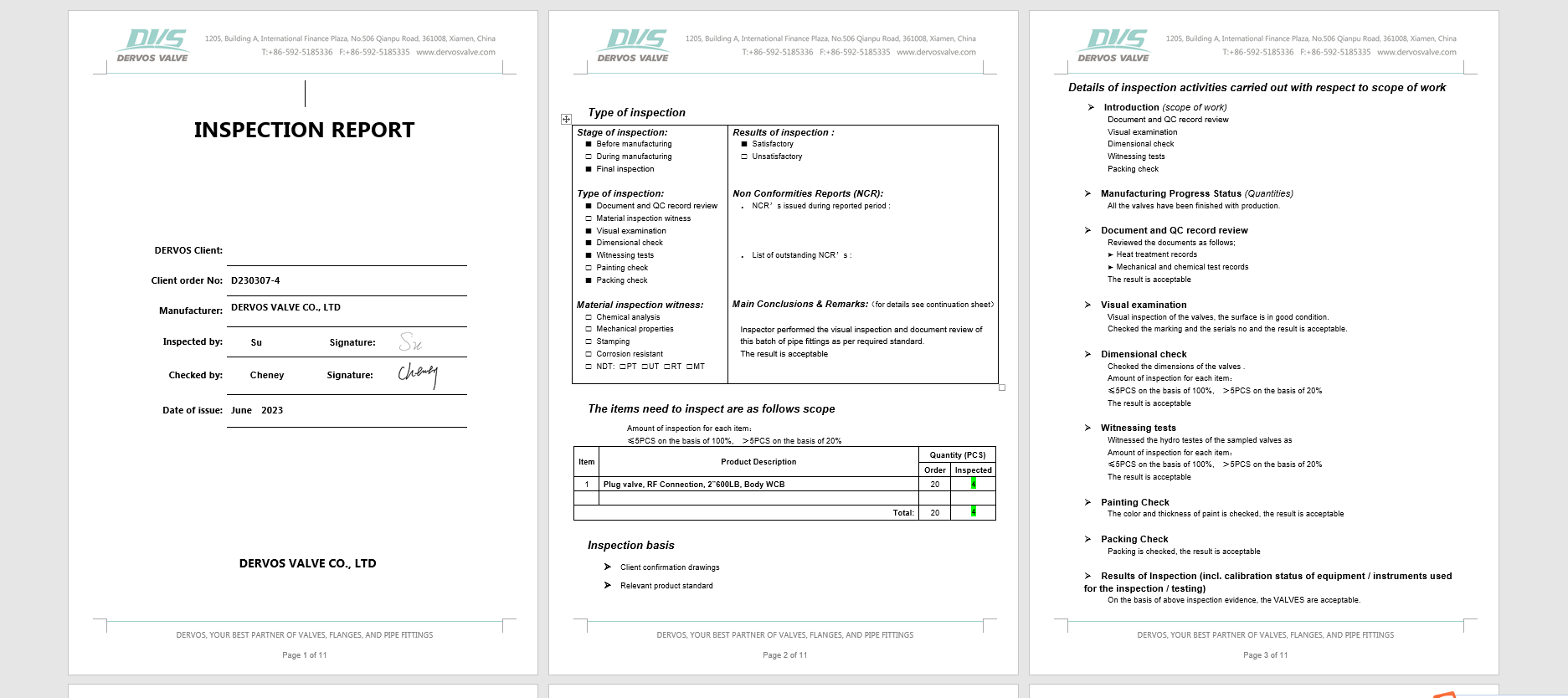

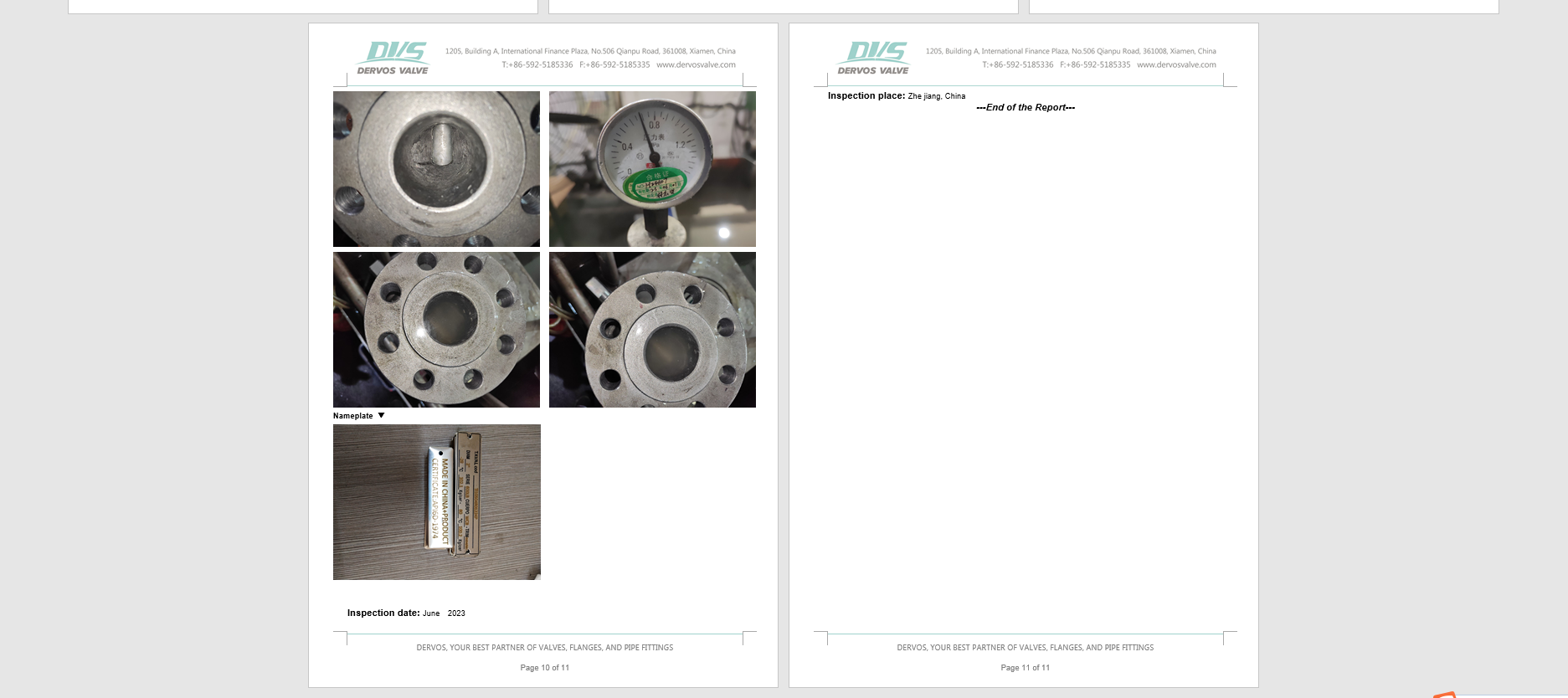

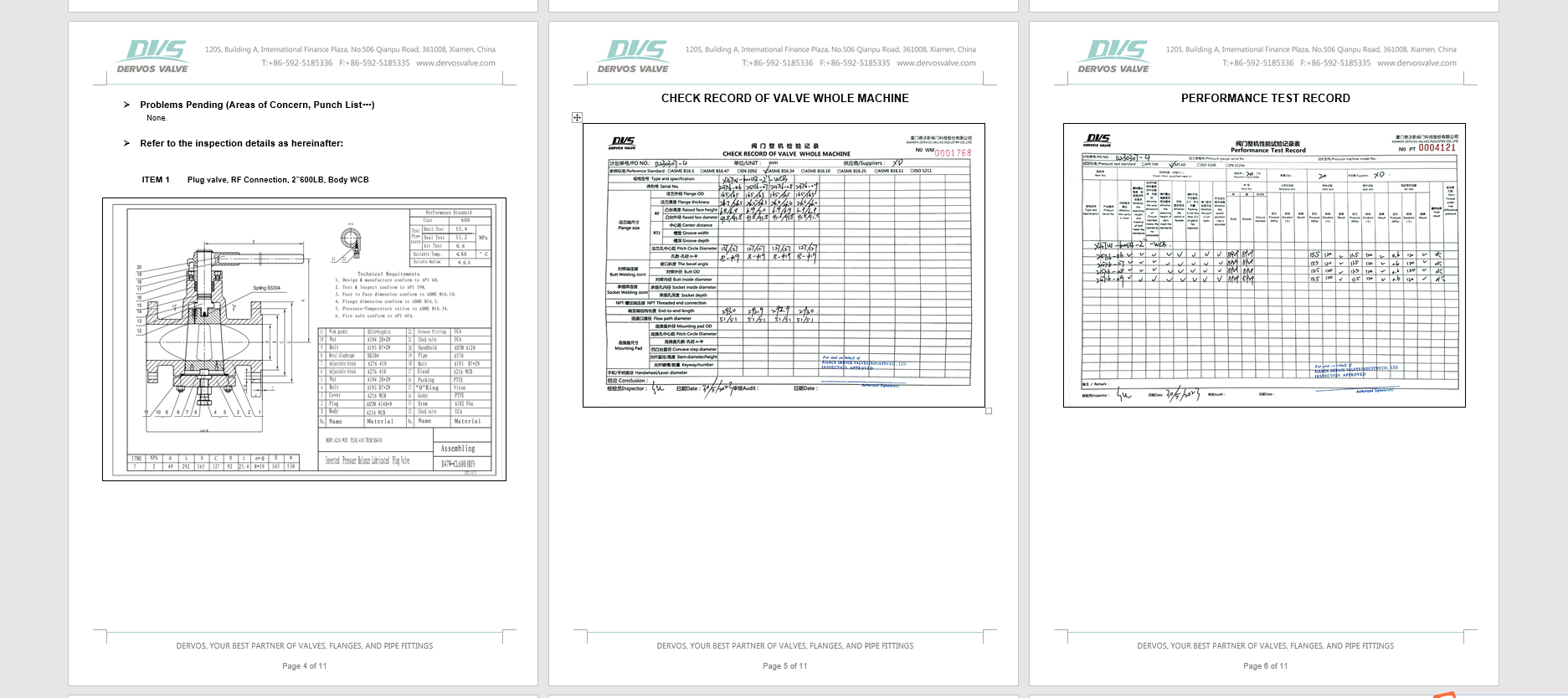

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
The 8 inch lubricated plug valve features in inverted and pressure balanced type structure. The flanged metal seated plug valve is suited for natural gas application. Quick Detail Type Plug Valve Size 8'' Design Pressure 300LB Construction Lubricated Type, Inverted Type, Pressure Balanced Type, Metal Seated Connection Type Flanged Connection Operation Gear Operated Design Code API 599 Face to Face ASME B16.10 End Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material WCC Temperature Range -29℃~+425℃ Application Water, Oil, Gas Dimension Class Size 1 1/2 2 2 1/2 3 4 6 8 10 12 300 B 191 216 241 283 305 403 419 457 502 C 156 165 191 210 254 318 381 445 521 D 20.6 22.2 25.4 28.3 31.8 36.5 41.3 47.6 50.8 E 169 178 219 235 362 F 106 118 143 165 187 248 300 392 O 73 92.1 105 127 157 216 270 324 381 Weight(RF) 16 21 38 60 101 192 281 508 Related Knowledge What is a plug valve? Plug valve is a quater-turn valve whose plug rotates around the centerline of valve body to realize on-off function. The plug valve is used for cutting off, distributing and changing the flow directoin. Currently, plug valves are mainly applicable for small size, normal temperature, and low pressure conditions. The advantages of plug valve are shown below: -Quick opening and closing the valve -Small fluid resistance -Reliable leak-tight service -Available inline maintenance
Inverted Pressure Balanced Lubricated Plug Valve is 2 inch and WCB body with metal seated. Apply to temperature lower than 80℃. Quick Detail Type Plug Valve Size 2” DesignPressure 150LB Construction Lubricated Type Plug Valve Connection Type Flange Connection Operation Lever/Wrench Design Code API6D Face to Face ASME B16.10 End Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API6D Body Material A216 WCB Temperature Range <80℃ Application WOG
The inverted pressure balanced lubricated plug valve is 2inch and 150 LB. Manufactured as per API6D, the valve is capable in manifolds and production services of oil fields, asphalt plants, others.
Quick Detail Type Plug Valve Size 1'' DesignPressure 600LB Construction Lubricated Type, Inverted Type, Pressure Balanced Type, Connection Type FNPT Operation Lever Operation Design Code API6D End Connection ASMEB1.20.1 Pressure & Temp ASME B16.34 Test & Inspection API 598 Fire Safe API 6FA Body Material A105 Temperature Range ≤80℃ Application Water, Oil, Gas Features --Reliable sealing performance and small torque; --Full bore --Low emission packing; --Fire safe design; --Optional locking device Technical Drawing Dimension Check Witnessing Tests Packing Why choose Dervos as your partner? One Stop Service Here in Dervos, we can provide you with one stop service by our complete product list, it means, you don’t need to search for various suppliers for different types of valves, and it will surely save your time and energy. All you need to do is choose Dervos and we will provide complete solutions to you. On Time Delivery Dervos keeps a high percentage of on time delivery. Why could we achieve that? Our purchasing team follows the order very closely. Plus, our QC and sales person will also do monitoring job on each order. Strict Quality Control All the members in the QC team are very experienced and professional. For each order, they will check the raw material, manufacturing process, do the pressure testing on shell and seal, and check the valve dimension per assembly drawing. Lastly, they will inspect the painting and packaging.
The 1 inch self-lubricated or non-lubricated plug valve is made of A315 CF3 as per API 599. It enjoys outstanding sealing and anti-corrosion performance, owing to its PTFE seat. Besides that, the sleeve type valve is only suitable for the normal temperature up to 120 degree. Quick Detail Type Plug Valve Size 1'' Design Pressure 150LB Construction Self-Lubricated Type, Sleeved Type, Soft Seat Connection Flange Operation Lever Operation Design Code API 599 Face to Face ASME B16.10 End Connection ASME B16.5 Test & Inspection API 598 Body Material A351 CF3 Temperature Range -29℃~+120℃ Application Water, Oil, Gas Dimension Checking Hydro-static Testing
The 8 inch plug valve is designed per API 6D with Class 150 RF flange and gearbox operation. The inverted plug valve is made of LCB. Dervos could offer customizing service by providing clients with valves in different sizes, materials, standards, design pressure, structure, operation type and connection type. Quick Detail Type Plug Valve Size 8'' Design Pressure 600LB Construction Inverted Type, Lubricated Type, Pressure Balanced Connection RF Flange Operation Gearbox Design Code API 6D Face to Face ANSI B16.10 End Connection ANSI B16.5 Test & Inspection API 598 Body Material LCB Temperature Range -46℃~+425℃ Application Water, Oil and Gas Dimension
1" 600LB plug valve is made according to API 6D standard. The valve body is made of A105. It has the structural characteristics of oil sealed and full bore. Its connection mode is FNPT. And it has handle (with locking device) operation mode.
2" 900LB plug valve is made according to API 6D standard. The valve body is made of A995 5A. It has the structural characteristics of oil sealed and full bore. Its connection mode is RF. And it has lever operation mode.
1" 600LB plug valve is made according to API 6D standard. The valve body is made of A216 WCB. It has the structural characteristics of inverted pressure balance lubricated and fire safe conform to API 6FA. Its connection mode is RF. And it has lever operation mode.
1" 3000PSI lubricated plug valve is made according to API6D standard. The valve body is made of A105. It has the structural characteristics of inverted pressure balance type. Its connection mode is NPT. And it has lever operation mode.
2" 150LB inverted pressure balanced lubricated plug valve is made according to API 6D standard. The valve body is made of A216 WCB. It has the structural characteristics of short structure, inverted oil seal, body valve seat. Its connection mode is RF. And it has lever operation mode.
The 12 inch 600LB trunnion mounted ball valve has gearbox, RTJ flange, fire safe design per API 607. The 3 piece ball valve is designed per API 6D. Design Feature & Benefit 1.Small flow resistance means less pressure drop 2.Simple valve structure and light weight 3.Diversified sealing material available, from metal material TCC, satellite, stainless steel to soft material PTFE, Teflon, Nylon, Peek and etc 4.Good performance of both metallic sealing and soft sealing 5.Convenient and swift operation of the valve 6.Easy to maintain due to renewable seat ring 7.When fully opened or closed, the valve sealing face is isolated from medium corrosion. 8.Wide range of application in terms of size and pressure rating Quick Detail Type Ball Valve Size 12" Pressure Class 600 Construction Trunnion Mounted Ball, Three-Piece Type, Side Entry Connection RF Flange Operation Gear Operated Body Material ASTM A105 Design & Manufacture API 6D Pressure & Temp ASME B16.34 Face to Face ASME B16.10 End Connection ASME B16.5 Test & Inspection Code API 598 Fire Safe API 607 Temperature Range -29℃~+200℃ Medium Water, Oil and Gas Origin China Material Specification No Part Name Carbon steel to ASTM Stainless Steel to ASTM WCB LCB CF8 CF8M CF3 CF3M 1 Underplate WCB LCB CF8 CF8M CF3 CF3M 2 Underplate Bolt A193 B7 A320 L7 A193 B8 3 Trunnion A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 4 Body A216 WCB A352 LCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M 5 Bonnet Nut A194 2H A194 4 A194 8 6 Bonnet Bolt A193 B7 A320 L7 A193 B8 7 Cap A216 WCB A352 LCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M 8 Gasket SS Spiral Wound/graphite or SS Spiral Wound/PTFE 9 Shaft Sleeve SS/graphite 10 Seat Ring RPTFE or POM 11 Ball A105/Ep.Cr or F6 A182 F6 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 12 Seat A105/Ep.Cr or F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 13 Spring 17-17PH(inconel for NACE)Ni-cr Alloy 14 O-Ring Viton 15 Stem A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 16 Sealing Cover A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 17 O-Ring Viton 18 Gear Actuator The material is according to ASTM standard Related Knowledge What is difference between floating and trunnion ball valve? The ball part of floating ball valve is movable. Under the pressure of medium, the ball has a certain displacement and presses on the sealing surface of outlet end to ensure its tight sealing. The floating structure is suitable for ball valve with small size and low & medium pressure rating. The ball part of trunnion mounted ball valve is fixed. Under the medium pressure, the floating seat will move towards the ball to ensure the sealing. The trunnion mounted ball valve is often with larger size and higher pressure.
