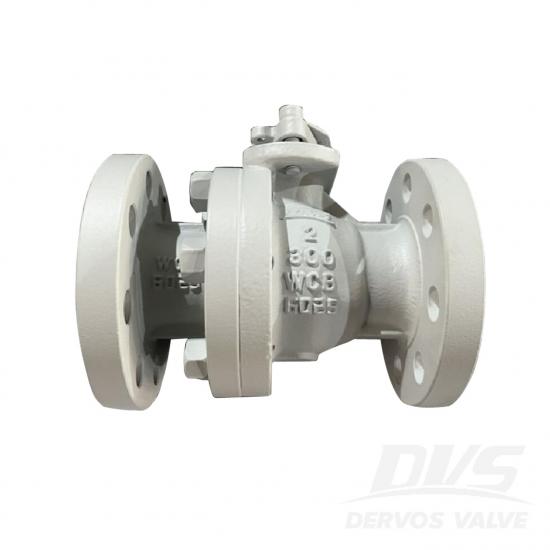

API6D 2" 300LB Floating Ball Valve RF WCB Lever

2" 300LB ball valve is made according to API 6D standard. The valve body is made of A216 WCB. It has the structural characteristics of full bore, floating ball, anti-fire, anti-static, and anti-flying valve stem design. Its connection mode is RF. And it has lever operation mode.

  • Payment:

    30% when order confirmed, 70% before shipment
  • Product Origin:

    China
  • Color:

    Customization
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    A216 WCB
  • Method of Operation:

    Lever
Inquiry now
Product Detail

Product Description

Type

Ball Valve

Size

2"

Pressure

300LB

Connection

RF

Operation

Lever

Body Material

A216 WCB

Design Norm

API 6D

Face to Face Dimensions

ASME B16.10

Flange Ends Dimensions(RF)

ASME B16.5

Test & Inspection Code

API 598

Wall Thickness

ASME B16.34

Temperature

-29 ~ 120°C

Applicable Medium

Water, Oil and Gas

Features

1. Small size, light weight, and simple structure;

2. Reliable sealing, convenient maintenance, easy operation and maintenance.

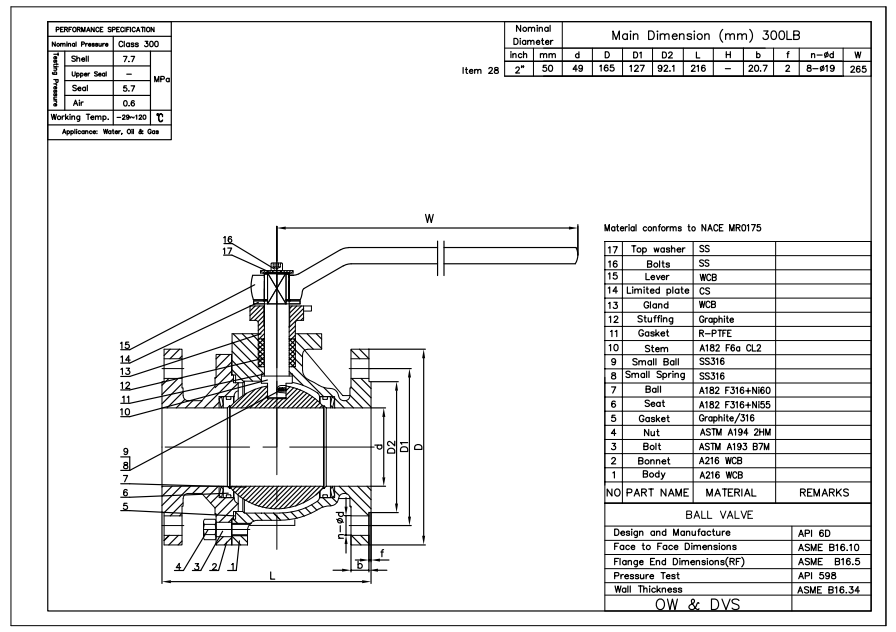

Technical Drawing

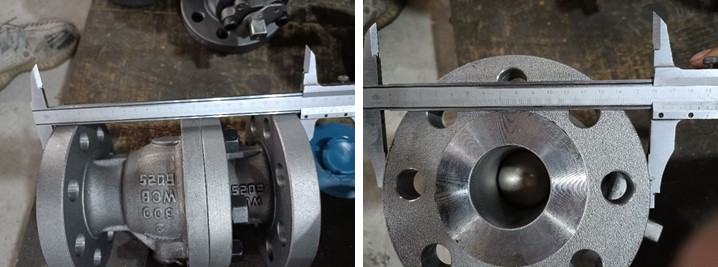

Dimension Checking

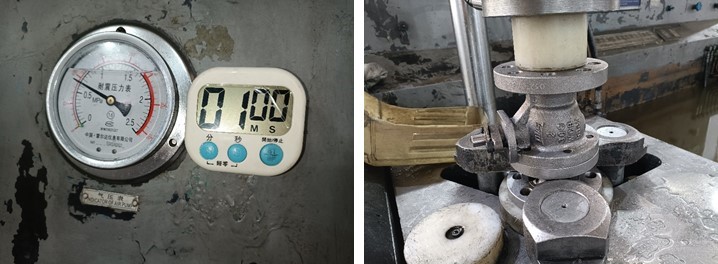

Pressure Testing

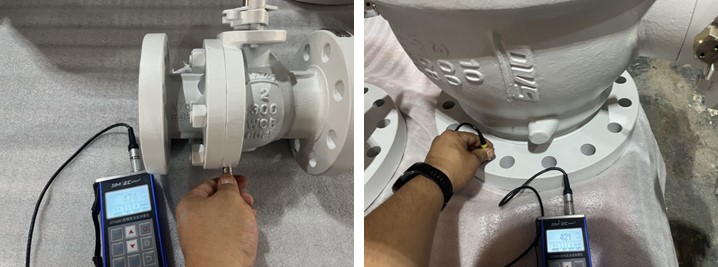

Painting

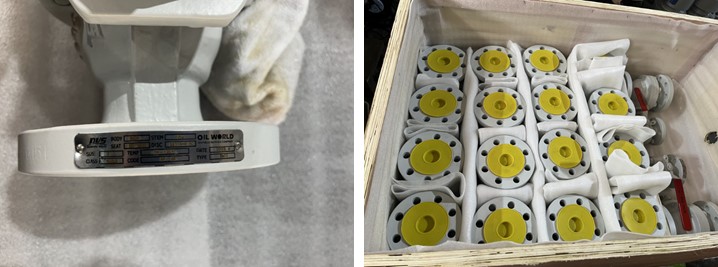

Nameplate & Packing

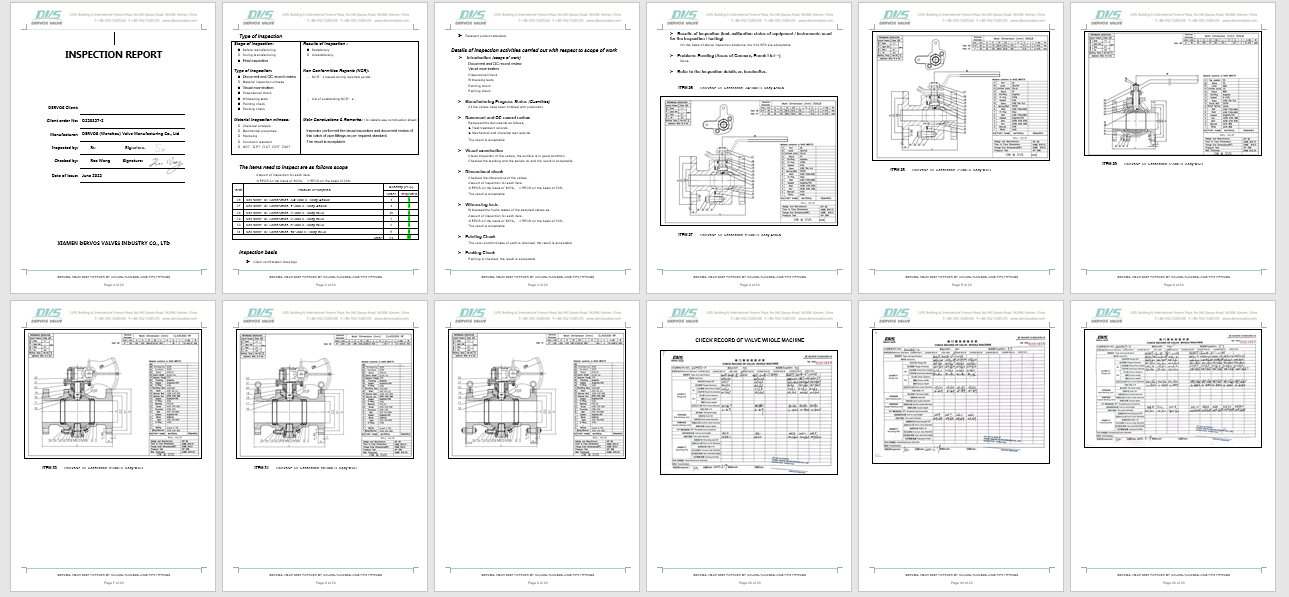

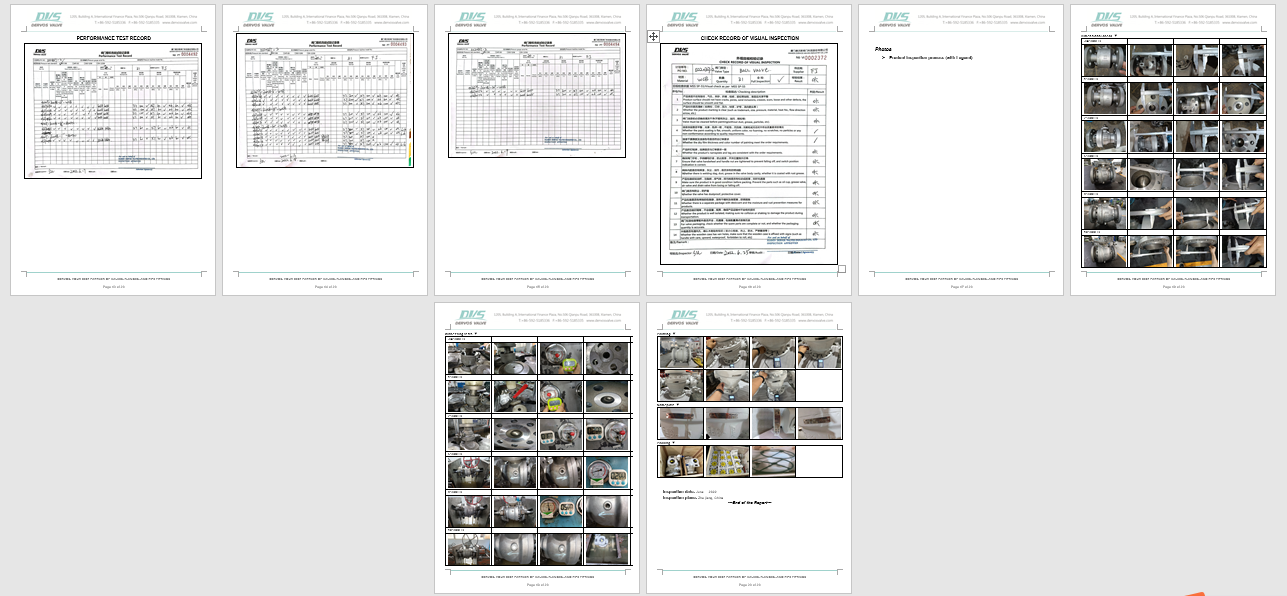

Inspection report
