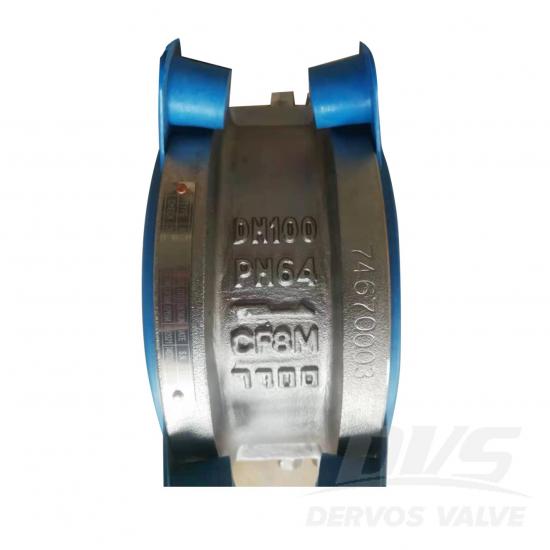

DN100 PN64 wafer check valve is made according to API 594 standard. The valve body is made of A351 CF8M. It has the structural characteristics of wafer type and double disc. Its connection mode is wafer type.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A351 CF8MProduct Description
Type |
Wafer Check Valve |
Size |
DN100 |
Pressure |
PN64 |
Connection |
Wafer Type |
Body Material |
A351 CF8M |
Design Norm |
API 594 |
Pressure-temperature |
ANSI B16.34 |
Flange Ends Dimension |
EN 1092-1 |
Face to Face Dimension |
API 594 |
Test & Inspection Code |
API 598 |
Applicable Medium |
Water, Oil and Gas |
Features
1. Fast closing prevents media from flowing back;
2. Compact, light, compact and easy to maintain.

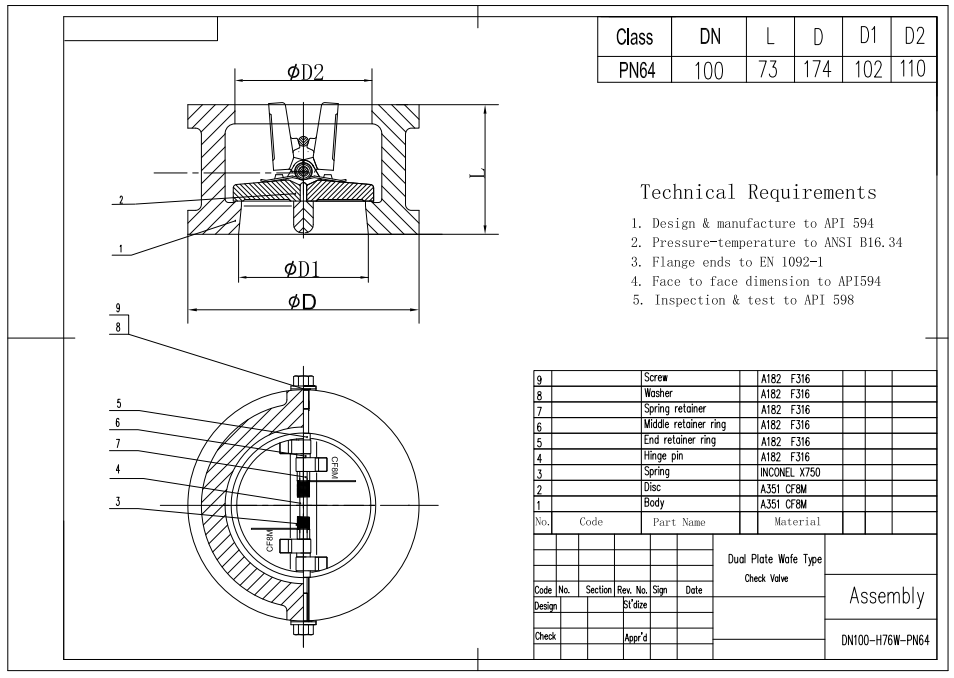

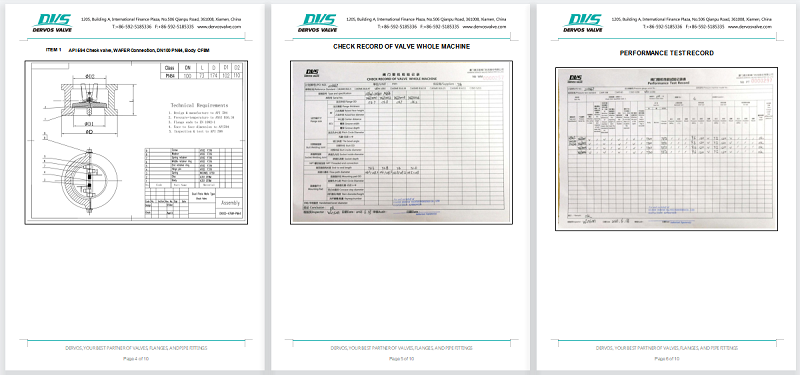

Technical Drawing

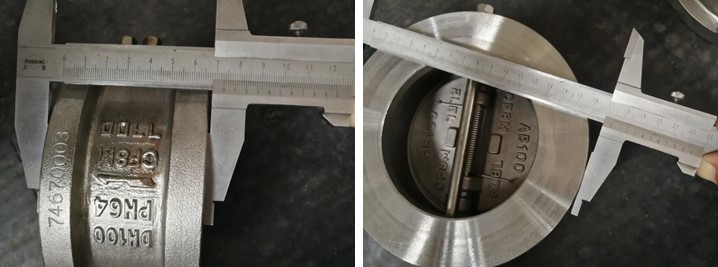

Dimension Checking

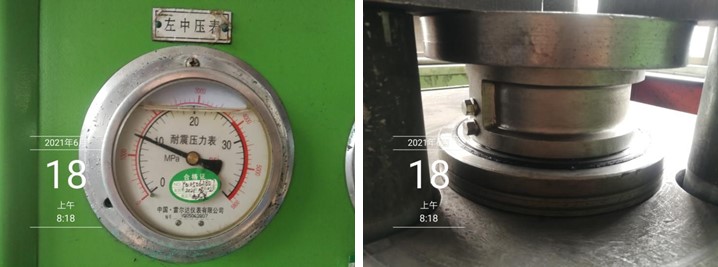

Pressure Testing

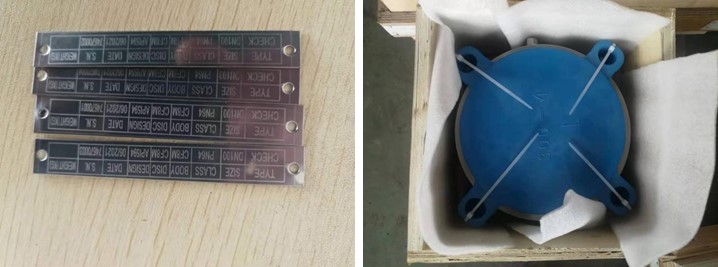

Nameplate & Packing

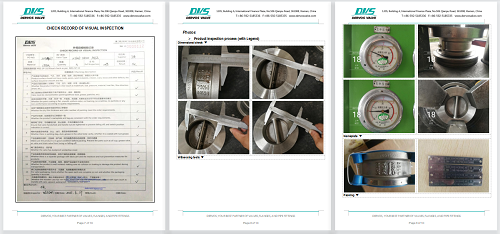

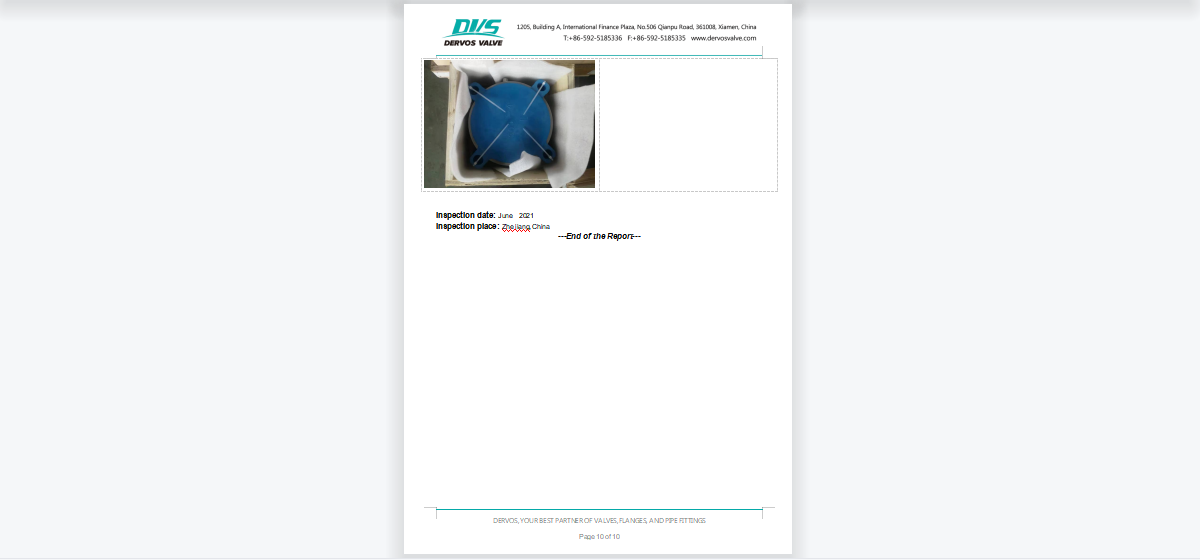

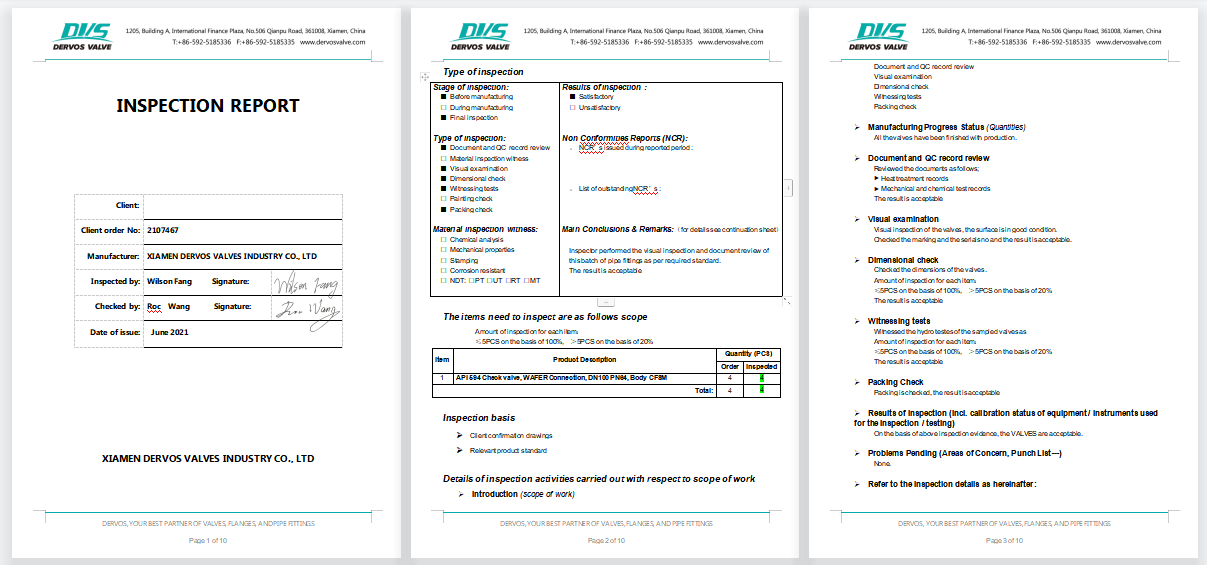

Inspection report
