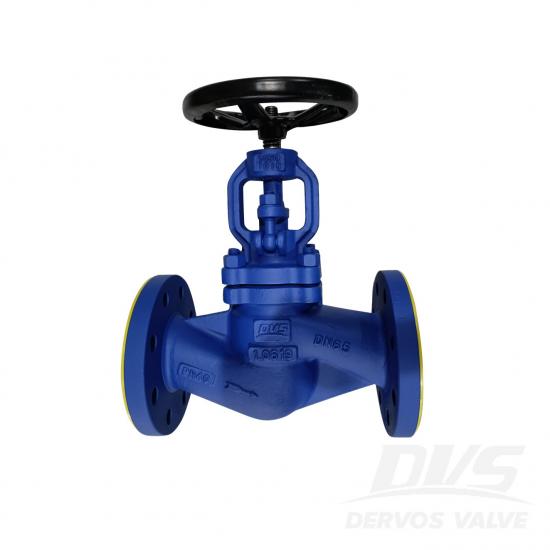

DN65 PN40 globe valve is made according to BS EN 13709 standard. The valve body is made of EN 10213 1.0619. It has the structural characteristics of bolted cover and straight through type. Its connection mode is EN1092-1 B. And it has hand wheel operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
EN 10213 1.0619Method of Operation:
Hand WheelProduct Description
Type |
Globe Valve |
Size |
DN65 |
Pressure |
PN40 |
Connection |
EN1092-1 B |
Operation |
Hand Wheel |
Body Material |
EN 10213 1.0619 |
Design Norm |
BS EN 13709 |
Face to Face Dimensions |
BS EN 558-1 |
Flange Ends Dimensions |
BS EN 1092-B1 |
Test & Inspection Code |
BS EN 12266 |
Applicable Medium |
Water, Oil and Gas |
Features
1. It is very suitable for cutting, adjusting, and throttling applications;
2. The manufacturing process is relatively good and easy to maintain.

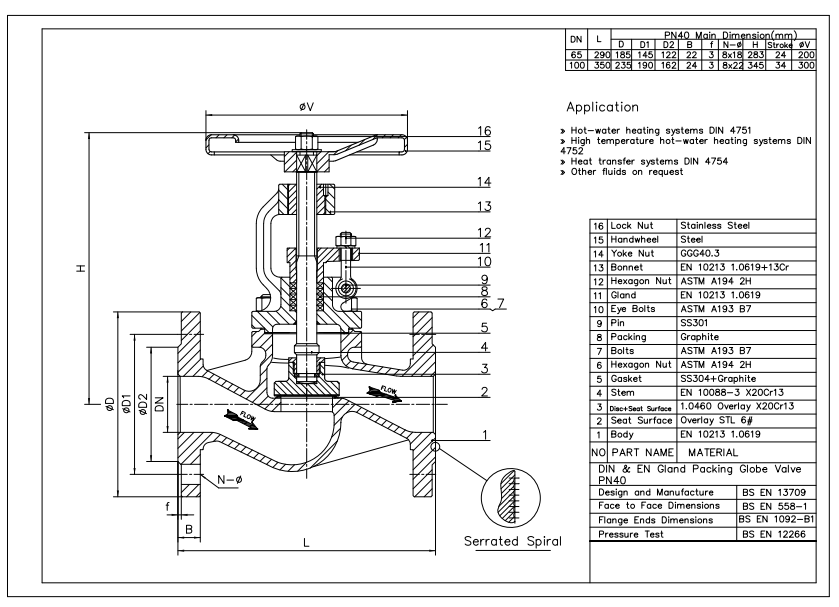

Technical Drawing

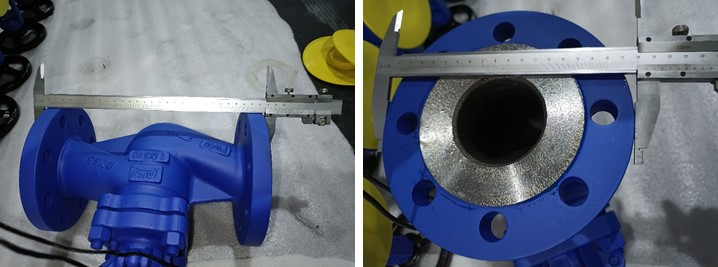

Dimension Checking

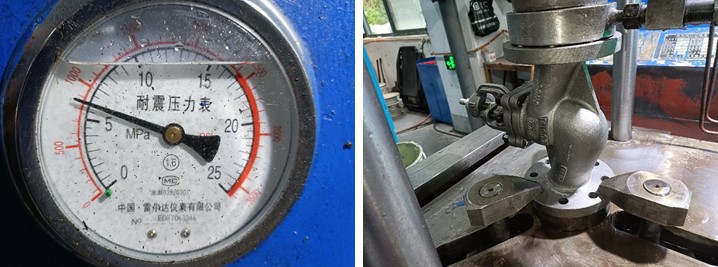

Pressure Testing

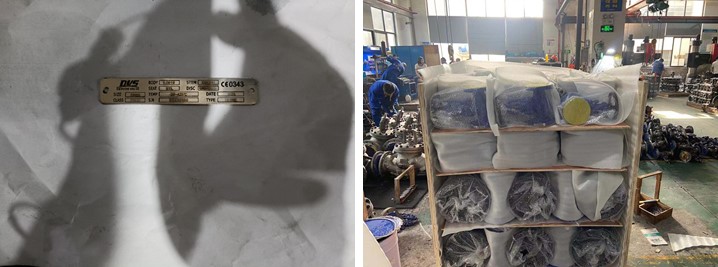

Nameplate & Packing

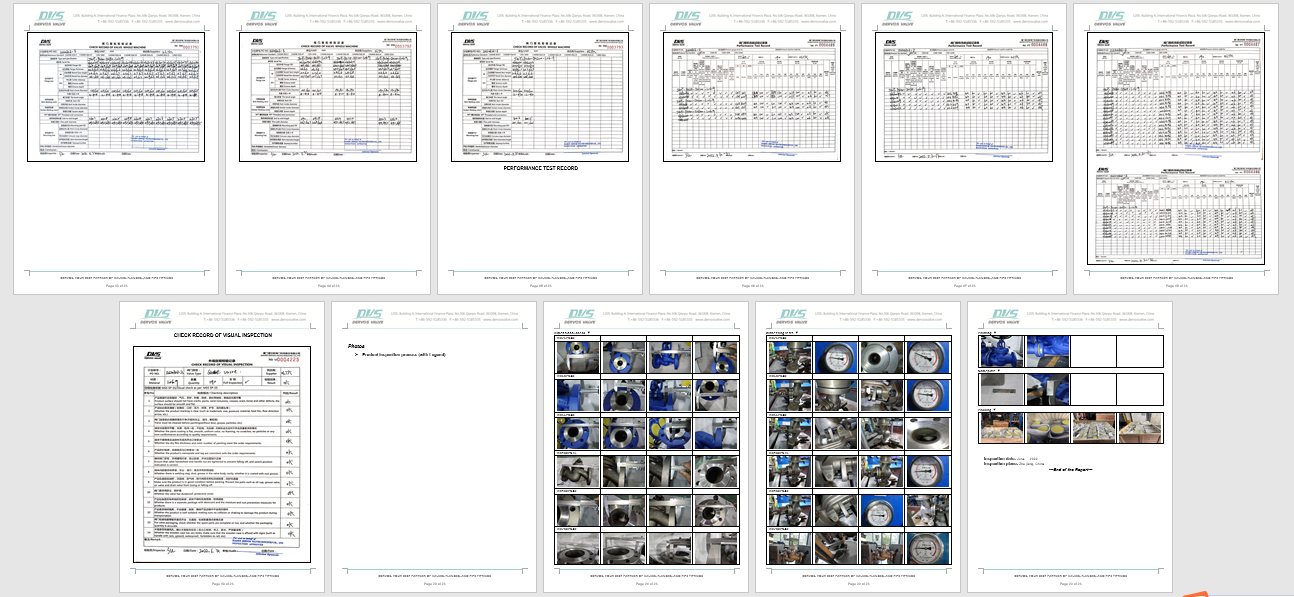

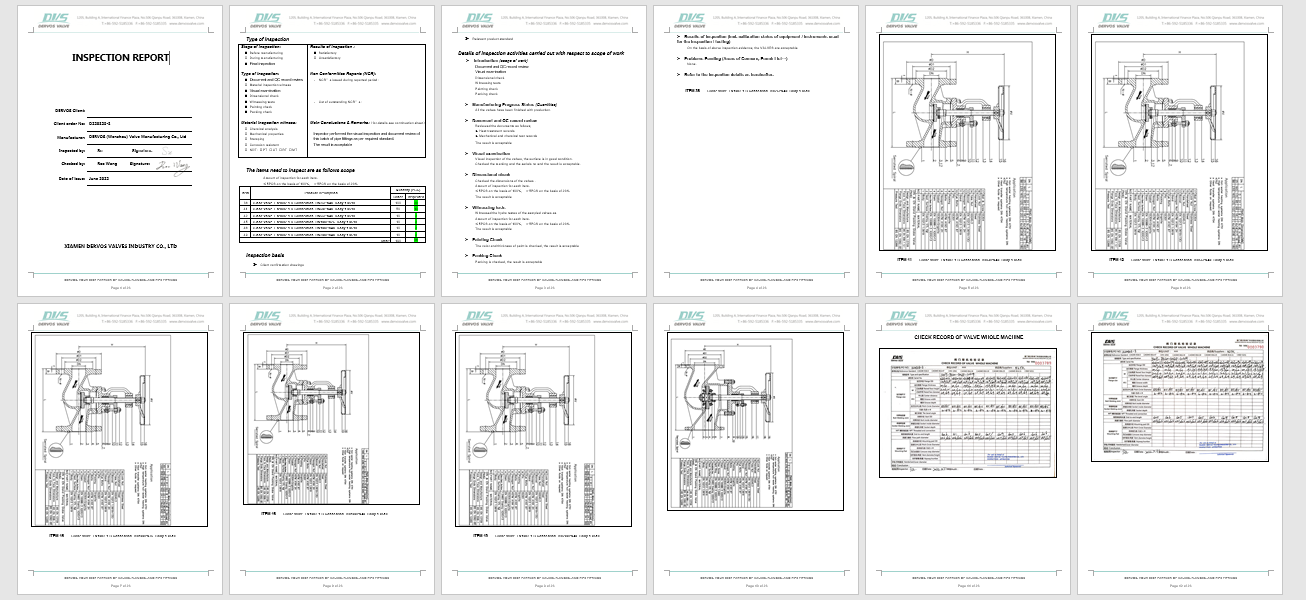

Inspection report
