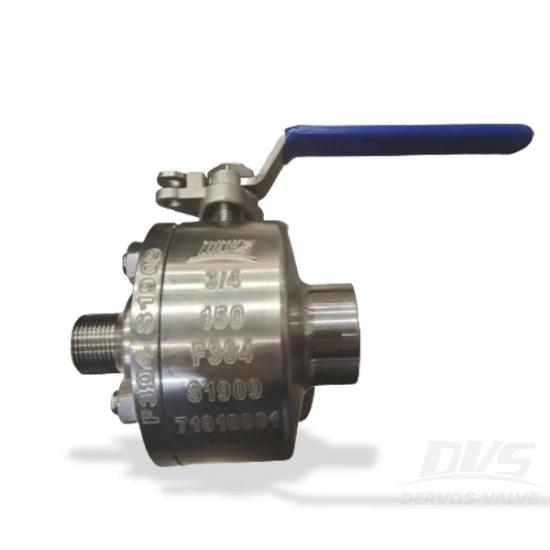

Made as per API6D, the two pc floating ball valve, 3/4inch and 150LB, has different ends.Find your floating ball valve or other valves easily in Dervos.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
F304Method of Operation:
LeverQuick Detail
|
Type |
Ball Valve |
|
Size |
3/4" |
|
Pressure |
ANSIClass 150 |
|
Construction |
Floating Ball, Two-Piece Body, Metal to Metal Seat |
|
Connection |
RF; External Thread * Internal Thread |
|
Operation |
Handle |
|
Body Material |
Cast Steel F304 |
|
Design Standard |
API6D |
|
Pressure & Temp |
ASME B16.34 |
|
F to FDimension |
ASME B16.10 |
|
End Connection |
ASME B16.25 |
|
Inspection |
API6D |
|
Temperature Range |
-29℃~150℃ |
|
Media |
Oil, Water, Gas |
Features
--Asymmetric Ends: X:G3/4 internal thread * X1:G3/4 external thread
--Split body
--Seats: Modified ball seats provide enhanced sealing performance and longer life
--Stem: Anti-static and proof Blow-out
-- Auto-adjustable packing

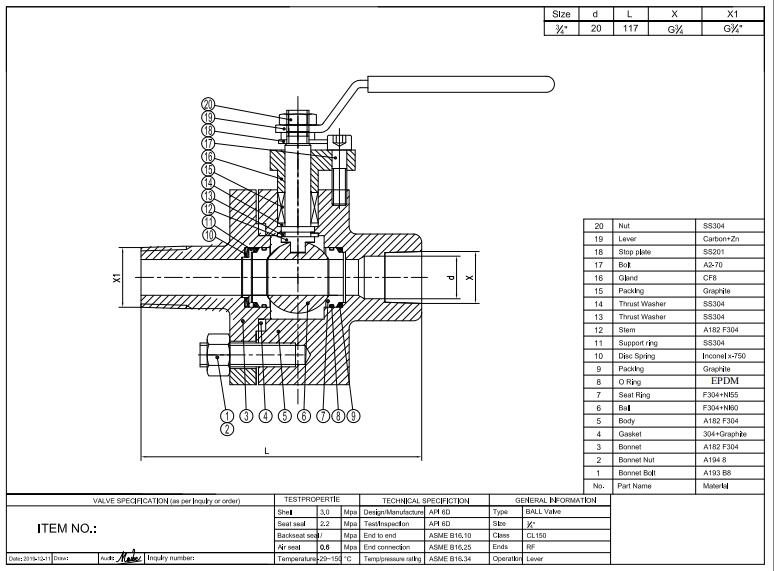

Technical Drawing

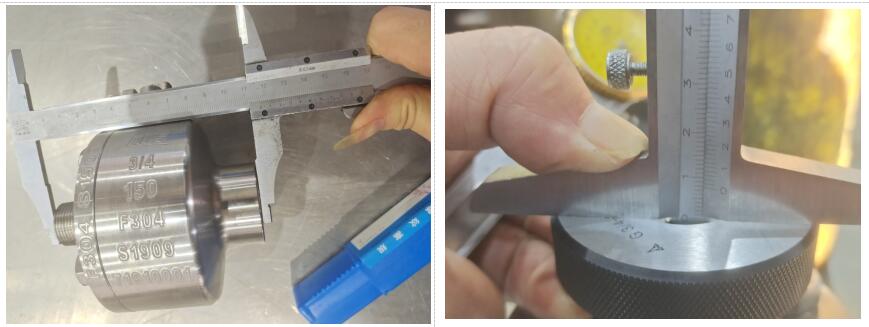

Dimension Check

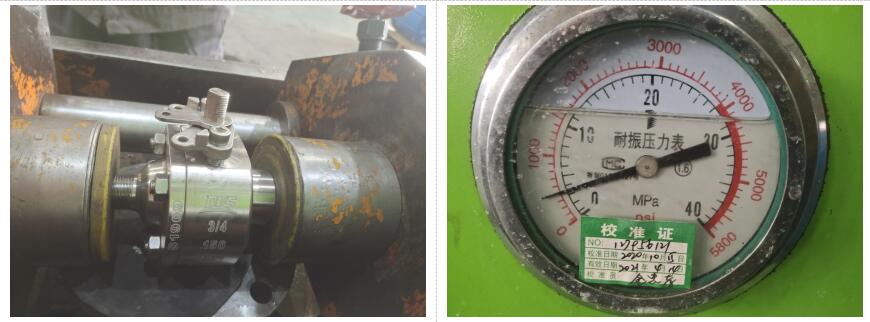

Witness Tests

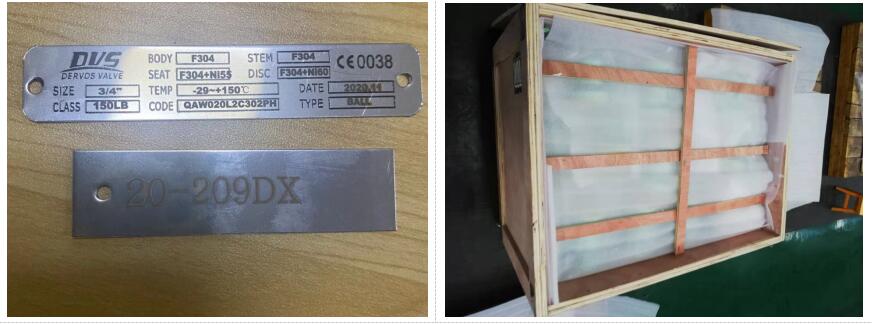

Nameplate & Packing

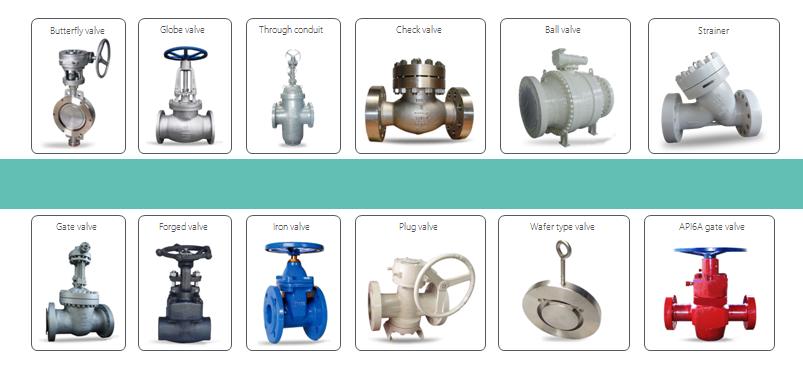

Our Main Product Range
With a complete product range, Dervos product lists cover gate, globe, check, ball, butterfly, check, plug valve and strainers. We can also provide marine valve, pressure reducing valve, control globe valve and so on.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
