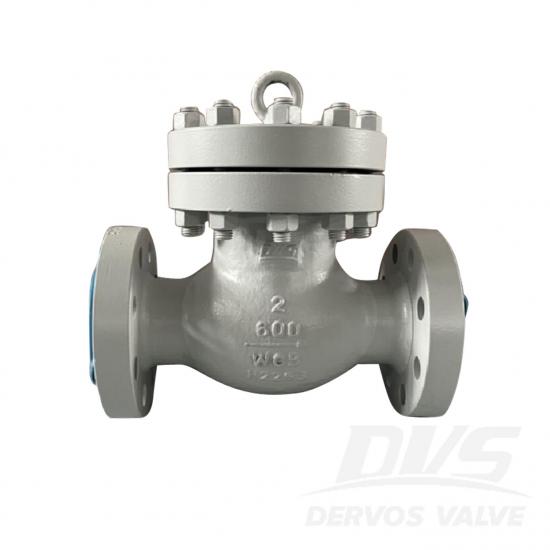

2" 600LB Lift Check Valve RF WCB BS1868 API598

2" 600LB check valve is made according to BS1868 standard. The valve body is made of A216 WCB. It has the structural characteristics of lifting type, bolt cover and body valve seat. Its connection mode is RF.

  • Payment:

    30% when order confirmed, 70% before shipment
  • Product Origin:

    China
  • Color:

    Customization
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    A216 WCB
Inquiry now
Product Detail

Product Description

Type

Check Valve

Size

2"

Pressure

600LB

Connection

RF

Body Material

A216 WCB

Design Norm

BS1868

Face to Face

ASME B16.10

Flange Dimension

ASME B16.5

Test & Inspection Code

API 598

Temperature

-29 ~ 425°C

Applicable Medium

Water, Oil and Gas

Features

1. Automatic sealing valve, effectively preventing medium backflow;

2. Reliable sealing, excellent performance, beautiful appearance, and can be installed horizontally and vertically.

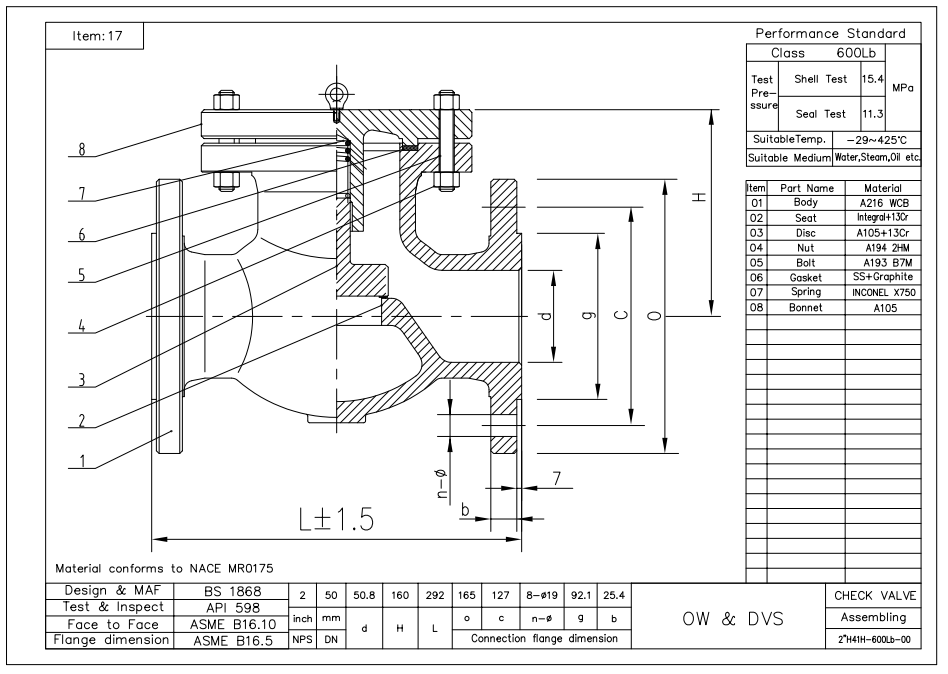

Technical Drawing

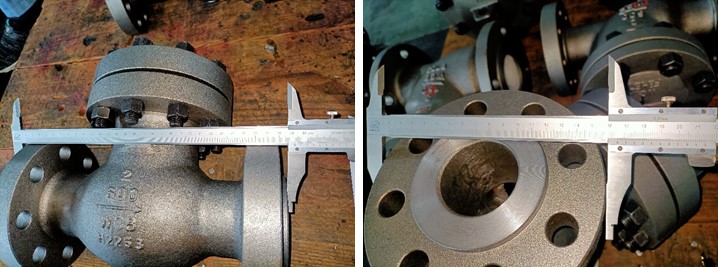

Dimension Checking

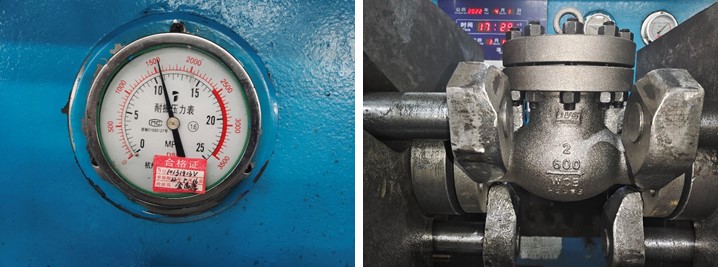

Pressure Testing

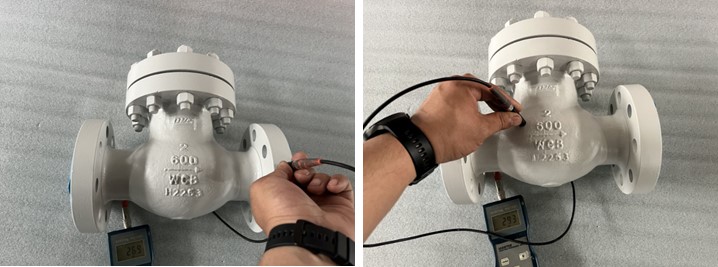

Painting

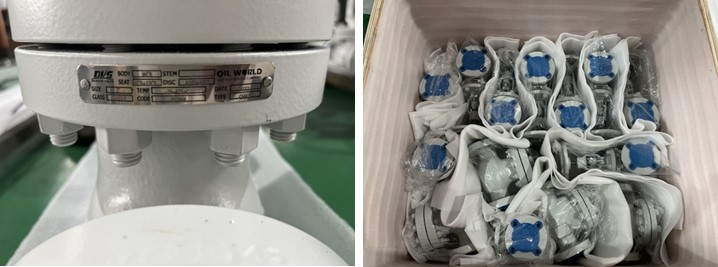

Nameplate & Packing

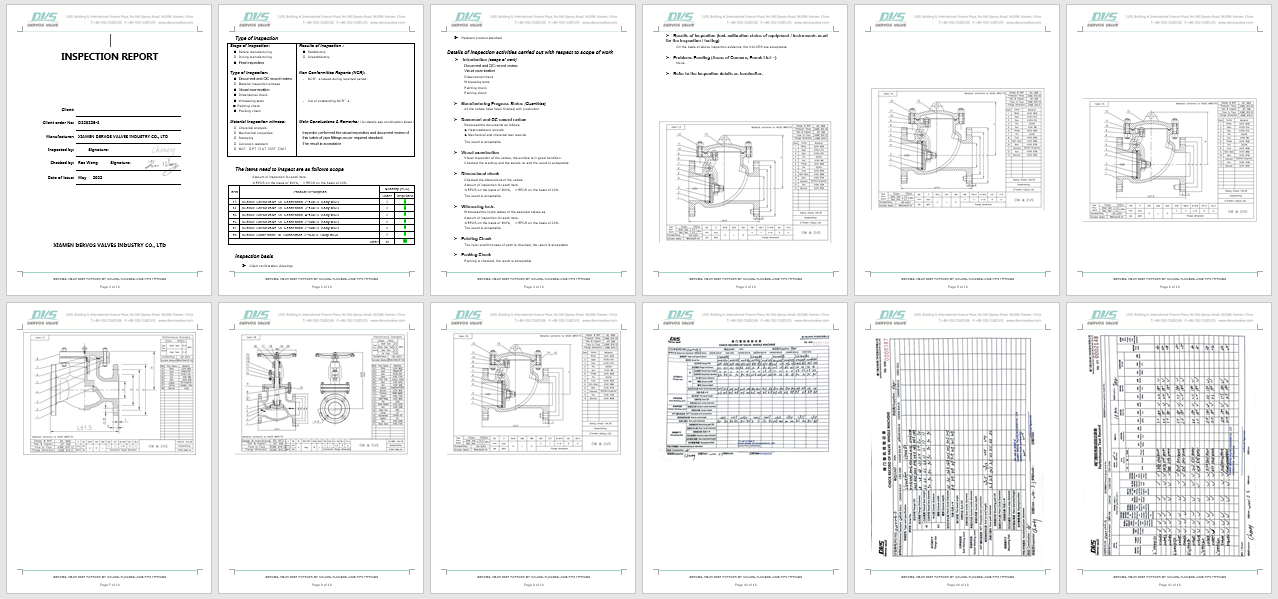

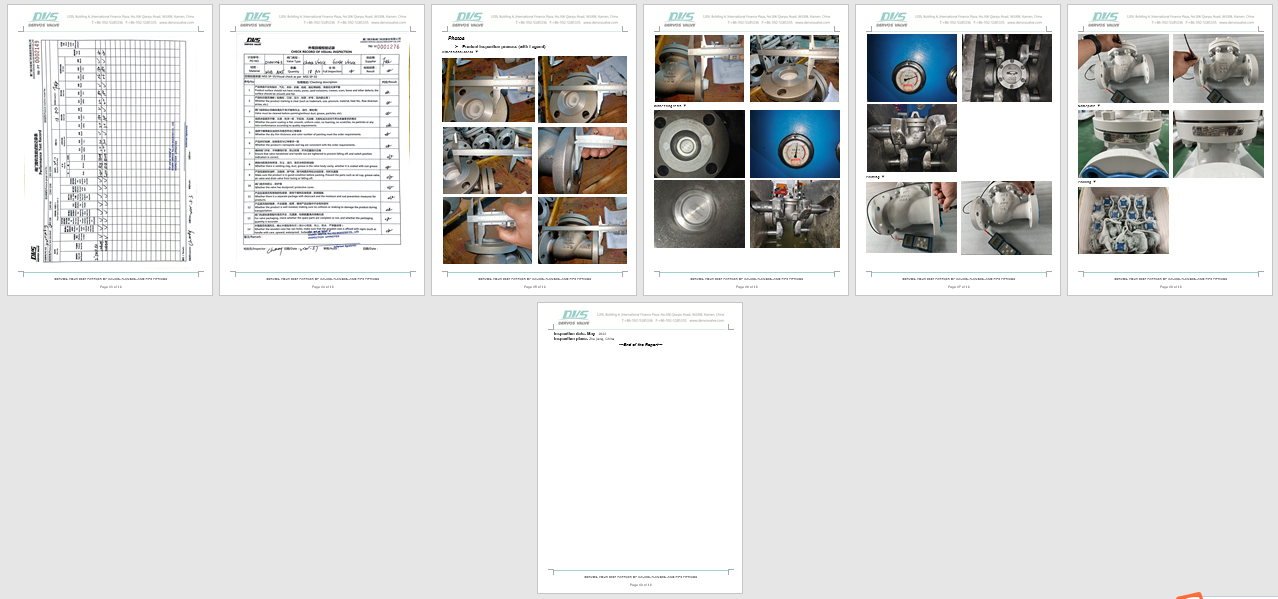

Inspection report
