Wide-body ball valves and single-piece ball valves are both types of ball valves used for controlling the on/off flow of medium in pipelines. Both wide-body and single-piece ball valves feature a one-piece (integral) body design, unlike split-body designs. This differs from two-piece and three-piece ball valves, which have segmented valve bodies. For internally threaded wide-body ball valves, the valve body is made from round or hexagonal stock, using either bar material or forged components. The ball core features a reduced-diameter design and is inserted from one side of the valve body. The stem uses an internal anti-blowout structure. Flat surfaces are machined on both the inlet and outlet sides of the body to facilitate assembly of the ball valve and allow the use of wrenches during pipeline installation. In wide-body ball valves, the stem stuffing box is relatively shallow, and the internal packing volume is limited, resulting in a moderate sealing performance of the stem. Therefore, these valves are more suitable for low-pressure medium applications. In contrast, two-piece and three-piece ball valves feature stem stuffing box structures that provide reliable sealing for high-pressure medium applications. The structure of flanged wide-body ball valves is essentially the same as that of internally threaded wide-body ball valves. Typically, the flange is connected to the intermediate valve body via threaded fasteners, although some designs utilize a forged one-piece structure. Externally threaded wide-body ball valves can use a union-type structure, where the union is directly welded to the pipeline and connects to the external threads on the valve body. This design allows for easy disassembly and reassembly during valve maintenance or replacement without requiring separate unions on the pipeline. The valve bodies of single-piece internally threaded ball valves and single-piece flanged ball valves are manufactured using casting processes, with the ball core featuring a reduced-diameter design. The stem uses an internal anti-blowout structure. The inlet and outlet ends of single-piece internally threaded ball valves have a hexagonal shape, similar to conventional internally threaded valves, to facilitate wrench operation and secure installation. In single-piece flanged ball valves, the flange and valve body are cast as a single unit, eliminating the need to machine and assemble the flange separately as in wide-body flanged ball valves. This approach reduces cost and simplifies the manufacturing process. Single-piece wafer-style ball valves have a shorter valve body length, making them more suitable for pipelines with limited space. Wide-body and single-piece ball valves both use a reduced-diameter ball design, resulting in higher flow resistance compared with two-piece and three-piece ball valves. The main differences are as follows: Valve Body Manufacturing Process ● Wide-bo...
In a wedge gate valve, the gate sealing surfaces are wedge-shaped, forming a specific angle relative to the gate centerline. The gate is driven downward by the valve stem to achieve closure. As the stem thrust increases, the normal force acting on the wedge-shaped sealing surfaces also increases, creating a forced sealing effect. This design significantly improves sealing performance under low-pressure conditions. During opening, the gate sealing surfaces disengage from the seat immediately, which helps reduce wear on the sealing faces and extends the service life of the valve. Applicable Standards for Wedge Gate Valves Wedge gate valves are commonly manufactured in accordance with the following standards: ● GB/T 12234-2019 – Steel gate valves with bolted bonnet for petroleum and natural gas industries ● GB/T 12232-2005 – General-purpose flanged cast iron gate valves ● API Standard 600 (2015) – Steel gate valves for petroleum and natural gas industries Types of Wedge Gate Valve Gates Wedge gate valves are typically available in three gate configurations:Solid wedge gate, Flexible wedge gate, Double wedge gate. The flexible wedge gate and double wedge gate rely on controlled deformation of the sealing surfaces to achieve improved contact with the valve seat. This design enhances sealing reliability and effectively prevents gate binding or jamming caused by temperature variations, ensuring smooth operation even under fluctuating thermal conditions. Parallel Slide Gate Valve Design and Sealing Principle In a parallel slide gate valve, the sealing surfaces at both the inlet and outlet ends of the gate are parallel to the gate centerline. For single-gate configurations, sealing is primarily achieved by the medium pushing a floating gate or floating seat into position. In double-gate configurations, sealing can be accomplished through springs or an expansion mechanism between the gates. Throughout the opening and closing process, the gate and seat sealing surfaces remain in constant contact, ensuring reliable sealing. Applicable Standards for Parallel Slide Gate Valves Common standards for parallel slide gate valves include: ● GB/T 23300-2009 – Parallel slide gate valves ● JB/T 5298-2016 – Steel parallel slide gate valves for pipelines ● API 6D – Pipeline valves for petroleum and natural gas industries Types and Features of Parallel Slide Gate Valves Parallel slide gate valves are available in single-gate and double-gate configurations. ● Gates may include flow-through holes or be solid. Gates with flow-through holes match the seat inner diameter, facilitating cleaning and drainage of the pipeline. ● Sealing can be configured at the inlet end, outlet end, or at both ends, depending on application requirements. This design ensures flexibility in sealing arrangements while maintaining reliable oper...
Damage to valve sealing surfaces is typically the result of multiple contributing factors, including material selection, operating conditions, operating practices, and maintenance. The following is a categorized summary of the most common causes: 1. Mechanical Damage ● Wear: Solid particles in the medium (such as sand or welding slag) erode the sealing surface, resulting in scratches or grooves. ● Abrasive scuffing: Frictional wear caused by relative movement of the sealing surfaces during valve opening and closing, particularly in metal-to-metal sealing pairs. ● Impact damage: Deformation of the sealing surface caused by high-velocity fluid impingement or rapid valve opening and closing, leading to impact loading. 2. Chemical Corrosion ● Media corrosion: Acidic, alkaline, or oxidizing media directly attack the sealing surface material, such as metal corrosion caused by H₂S or chloride ions. ● Electrochemical corrosion: When sealing pairs made of dissimilar metals are exposed to an electrolyte, galvanic corrosion may occur due to electrochemical cell formation. ● Erosion–corrosion: The combined effect of corrosive media and high-velocity flow accelerates material loss on the sealing surface. 3. Thermal Damage ●Thermal fatigue:Frequent temperature fluctuations cause repeated thermal expansion and contraction of the sealing surface, leading to cracking or deformation. ●High-temperature oxidation:At elevated temperatures, the sealing surface may undergo oxidation, hardening, or burn-off, as commonly observed in steam valve applications. ●Thermal shock:Sudden exposure to high- or low-temperature media can cause cracking of the sealing surface, such as during rapid condensation or cold media ingress. 4. Improper Installation and Operation ●Installation misalignment: Incorrect valve installation or excessive piping stress can result in uneven loading on the sealing surfaces. ●Over-tightening: Excessive preload applied to the valve stem or bolting may crush or deform the sealing surface, particularly in soft-seated valves or soft sealing gaskets. ●Rough operation: Rapid opening and closing or excessive operating force can cause impact damage to the sealing surfaces. 5. Material Defects ●Improper material selection: The sealing surface material lacks sufficient resistance to process media, high temperature, or wear, such as the use of carbon steel in acidic service. ●Manufacturing defects: Defects in the hardfacing or overlay layer, including porosity, slag inclusions, or improper heat treatment, reduce wear resistance and overall sealing performance. 6. Abnormal Operating Conditions ●Cavitation / flashing: Pressure fluctuations in the fluid generate vapor bubbles that collapse and impact the sealing surface, a phenomenon commonly observed in valves installed downstream of pumps. ●Scaling / deposition: Impurities in the medium accumulate on the sealing surface, impairing tight shutoff, suc...
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
CU5MCUCMethod of Operation:

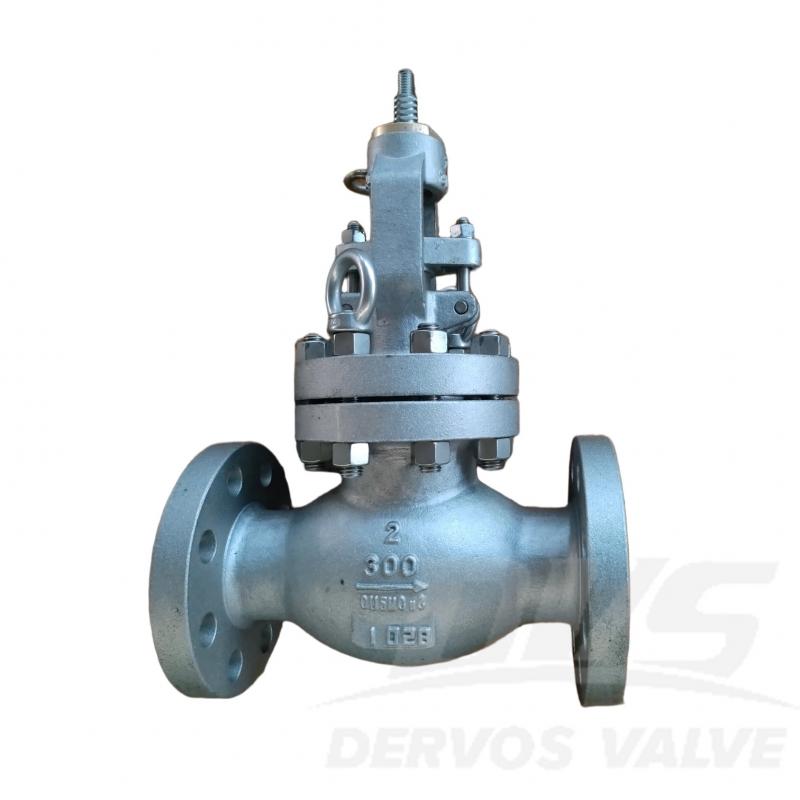

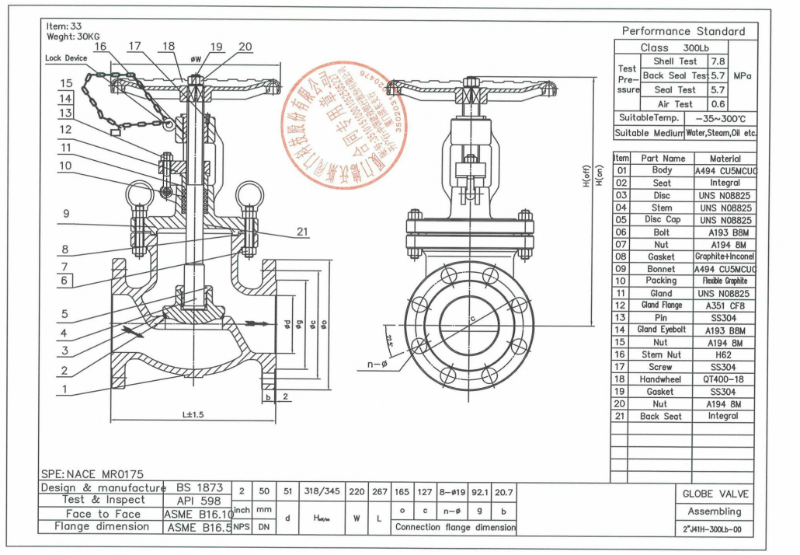

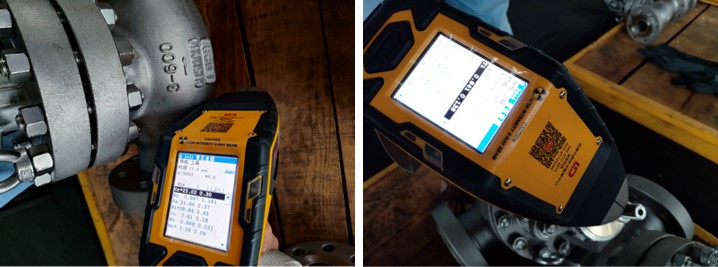

Hand wheel2" 300LB Globe Valve is made according to BS1873 standard. The valve body is made of A494 CU5MCUC. It has the structural characteristics of OS&Y, Bolted Bonnet (BB), Plug-type Disc, materials compliant with NACE MR0175. Its connection mode is RF. And it has Hand Wheel operation mode.
|
Type |
Globe Valve |
|
Size |
2” |
|
Pressure |
300LB |
|
Connection |
RF |
|
Operation |
Hand wheel |
|
Body Material |
A494 CU5MCUC |
|
Design Norm |
BS1873 |
|
Face to Face |
ASME B16.10 |
|
Flange dimension |
ASME B16.5 |
|
Test & Inspection Code |
API 598 |
|
Temperature |
-35 ~ 300°C |
|
Applicable Medium |
Water, Oil and Gas |
1.CU5MCuC nickel aluminum bronze construction provides excellent resistance to corrosion, cavitation, and seawater environments.
2.Globe valve design with RF flange and hand wheel operation, compliant with BS 1873, ensures accurate flow regulation and reliable shutoff.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
16" 150LB plug valve is made according to API6D standard. The valve body is made of A216 WCC. It has the structural characteristics of DBB, suitable for mediums such as Naptha, Gasoline, MTBE. Its connection mode is RF.
DN25 PN40 Flange Gate Valve is made according to API602 standard. The valve body is made of A182-F316Ti. Its connection mode is EN1092-1 B1. And it has Hand Wheel operation mode. Product Parameters Type Stainless Steel Gate Valve Size DN25 Pressure PN40 Connection EN1092-1 B1 Operation Hand Wheel Body Material A182-F316Ti Design Norm API 602 Flange dimension EN 1092 Material conform AISI/ASTM Test & Inspection Code EN 12266 Temperature -29 ~ 120°C Applicable Medium Water, Oil and Gas Features 1.F316Ti stainless steel body provides enhanced resistance to intergranular corrosion and elevated-temperature service. 2.DN25 PN40 gate valve designed to API 602 with EN1092-1 B1 flange ensures stable operation and tight isolation in process pipelines. Technical Drawing Dimension Checking Pressure Testing Spectrum Inspection Report
The DN32 JIS 5K globe valve is suitable for marine application. The bronze globe valve is handwheel operated with FF flange. Quick Detail Type Marine Globe Valve Size DN 32 Design Pressure 5K Connection Type FF Flange Design Code JIS F7301 Face to Face JIS B2002 Body Material Bronze Trim Material Bronze Application Water, Oil, Gas Purchasing System Late delivery time become a common issue in 2018. However, Dervos keep more than 90% on-time delivery, so how do we achieve that? It owns our purchasing department. How do we react to a delay crisis? -Visit the factory everyday and supervise on site -Initiate related resources, such as machining workshops and skilled workers to help on expediting production What benefits could we do for you by keeping on-time delivery? -Avoid penalty from end user -Accumulate reputation -Gain client’s trust FAQ 1. Do you have your own foundry or forge shop? No, but we have an approved list of foundries over the past decade of casting inspections, which can make sure that our castings are of good quality and all the raw materials are traceable. 2. Can you do NDE Capability radiography, MT, UT, LP? Of course, we can do all these tests upon our clients, but there will be additional charge to these tests. 3. What kind of test will you do for each order? After valve assembly, we will do hydraulic test for shell & sealing and air test. Plus, we will do dimension checking (face to face dimension, flange dimension) as per assembly drawing and standards.
2" 150LB knife gate valve is made according to MFS standard. The valve body is made of ASTM A351 CF8. It has the structural characteristics of bilateral sealing and with flow deflector. Its connection mode is lug. And it has hand wheel operation mode.
24” 150LB Dual Plate Wafer Type Check Valve is made according to API 594 standard. The valve body is made of A216 WCB+SS316. It has the structural characteristics of Dual-plate wafer type, wafer body design. Its connection mode is Double flange, ASME B16.5.
The 16 inch cast steel gate valve with gearbox and 600LB RF flange is designed as per API 600. The bolted bonnet gate valve features in rising stem, resilient wedge and metal seat. Quick Detail Type Gate Valve Size 16" Pressure Class600 Construction Bolted Bonnet, Rising Stem, OS&Y, Flexible Wedge, Metal Seat Connection RF Flange Operation Gearbox Design Code API 600 Face to Face ASME B16.10 Flange End ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material A216 WCB TrimMaterial Trim 5 Temperature Range -29℃~+425℃ Medium Water, Oil and Gas Origin China Dimension & Material Class 600 NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24 DN mm 50 65 80 100 150 200 250 300 350 400 450 500 600 L-L1 (RF-BW) in 11.5 13 14 17 22 26 31 33 35 39 43 47 55 mm 292 330 356 432 559 660 787 838 889 991 1092 1194 1397 L2 (RTJ) in 11.625 13.125 14.125 17.125 22.125 26.125 31.125 33.125 35.125 39.125 43.125 47.25 55.375 mm 295 333 359 435 562 664 791 841 892 994 1095 1200 1407 H (OPEN) in 18.625 21.75 23.375 28 1/16 38 3/16 44 3/16 52.375 59 13/16 68.125 72.25 90.125 98 13/16 119 mm 474 553 593 713 970 1122 1330 1519 1730 1835 2290 2510 3022 W in 9.875 9.875 11 13/16 13.75 19 11/16 22 1/16 28.375 24 24 24 24 30 30 mm 250 250 300 350 500 560 720 610* 610* 610* 610* 760* 760* WT (kg) RF 41 58 88 131 253 413 623 784 1288 1820 2150 2540 4080 BW 35 50 68 104 208 328 496 637 1120 1448 1828 2201 3360 *Manual gear operator is recommended No Part Name Carbon steel to ASTM Alloy steel to ASTM Stainless steel to ASTM WCB LCB WC6 WC9 C5 CF8 CF8M CF3 CF3M 1 Body A216 WCB A350 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 2 Seat Ring A105 A350 LF2 A182 F11 A182 F22 A182 F5 A182 F304 A182 F316 A182 F304L A182 F316L 3 Wedge A216 WCB A350 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 4 Stem A182 F6 A182 F6 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 5 Bonnet nut A194 2H A194 4 A194 7 A194 8 6 Bonnet bolt A193 B7 A320 L7 A193 B16 A193 B8 7 Gasket SS Spiral Wound graphite or SS Spiral Wound PTFE 8 Bonnet A216 WCB A352 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 9 Backseat bushing A182 F6 A182 F6 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 10 Stem packing Graphite or PTFE 11 Lantern A182 F6 A182 F6 A182 F304 A182 F304 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 12 Gland Nut A194 2H A194 8 13 Gland Eyebolt A193 B7 A193 B8 14 PIN Carbon steel or Stainless Steel 15 Gland A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 16 Gland Flange A216 WCB A351 CF8 17 Stem Nut A439 D2 or B148-952A 18 Nipple Carbon steel or Stainless Steel 19 Retaining Nut Carbon steel 20 Hand Wheel Ductile Iron or carbon steel 21 Name Plate Stainless steel or Aluminum 22 H.W.Lock Nut Carbon steel
This 1/2 Inch plug valve is made of A216 WCB, according to API598.With little required maintenance and trouble-free operation, a high integrity bubble-tight seal is provided both in-line and to atmosphere.
DN25 PN40 ball valve is made according to ISO17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of floating ball and full bore. Its connection mode is EN 1092-1 B1. And it has lever operation mode.
8" 2500LB DBB Trunnion Mounted Ball valve is made according to API 6D standard. The valve body is made of A182 F51. It has the structural characteristics of DBB Fixed Ball Valve, Full Bore, Fireproof/Electrostatic/Anti-Exposed Stem Design, Compliant with NACE MR0175. Its connection mode is RTJ. And it has Turbine operation mode with locking device.
Quick Detail Type Plug Valve Size 1'' DesignPressure 600LB Construction Lubricated Type, Inverted Type, Pressure Balanced Type, Connection Type FNPT Operation Lever Operation Design Code API6D End Connection ASMEB1.20.1 Pressure & Temp ASME B16.34 Test & Inspection API 598 Fire Safe API 6FA Body Material A105 Temperature Range ≤80℃ Application Water, Oil, Gas Features --Reliable sealing performance and small torque; --Full bore --Low emission packing; --Fire safe design; --Optional locking device Technical Drawing Dimension Check Witnessing Tests Packing Why choose Dervos as your partner? One Stop Service Here in Dervos, we can provide you with one stop service by our complete product list, it means, you don’t need to search for various suppliers for different types of valves, and it will surely save your time and energy. All you need to do is choose Dervos and we will provide complete solutions to you. On Time Delivery Dervos keeps a high percentage of on time delivery. Why could we achieve that? Our purchasing team follows the order very closely. Plus, our QC and sales person will also do monitoring job on each order. Strict Quality Control All the members in the QC team are very experienced and professional. For each order, they will check the raw material, manufacturing process, do the pressure testing on shell and seal, and check the valve dimension per assembly drawing. Lastly, they will inspect the painting and packaging.
16'' 150LB swing check valve is made according to API 594 standard. The valve body is made of A216 WCB+316. It has the structural characteristics of swing type and double disc wafer type. Its connection mode is RF.
The 12 inch 150 LB cast steel globe valve is made of carbon steel WCB body and trim 8, with gearbox, RF flange, BB, and plug disc. Quick Detail Type Globe Valve Size 12'' Pressure Class 150 Construction Bolted Bonnet, Straight Pattern,Plug Disc, OS&Y Connection Flanged Connection Operation GearOperated Design Code BS 1873 Face to Face ASME B16.10 Flange Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material A216 WCB TrimMaterial Trim 8 Temperature Range -29℃~+427℃ Application WOG Origin China Dimension Class 150 NPS in 2 2 1/2 3 4 5 6 8 10 12 DN mm 50 65 80 100 125 150 200 250 300 L-L1 (RF-BW) in 8 8-1/2 9-1/2 11-1/2 14 16 19-1/2 24-1/2 27-1/2 mm 203 216 241 292 256 406 495 622 698 L2 (RTJ) in 8-1/2 9 10 12 14-1/2 16-1/2 20 25 28 mm 216 229 254 305 368 419 508 635 711 L3 mm 102 108 121 146 178 203 248 311 349 H (OPEN) in 14-11/16 15-3/8 16-9/16 20-1/4 21-3/16 22-5/15 24-5/8 28 39 mm 373 390 421 515 538 567 626 712 990 W in 7-7/8 9-7/8 9-7/8 11-13/16 11-13/16 13-3/4 15-3/4 17-3/4 24 mm 200 250 250 300 300 350 400 450 610 WT (kg) RF 22 29 42 64 77 105 154 288 507 BW 19 25 34 49 65 82 131 249 430 Related Knowledge What is the difference between a gate valve and a globe valve? Gate valves and globe valves are two of the most common valves we know. The differences beween them are: 1.Gate valve is used only for on-off function. But the globe valve could be used for shutting off and throttling at the same time. 2.The flow resistance of a globe valve is larger than a gate valve. Likewise, globe valves have more pressure drop than gate valves. 3.The gate valve require larger installation space than a globe valve from the perspective of opening height. 4.The gate valve sealing face suffers more abrasion than a globe valve. 5.The torque value of a globe valve is larger than a gate valve. Quality Checking Quality means everything in Dervos. Quality checking team will do inspections according to standard procedure and provide reports. Our QC team will check valve quality from casting and forging, machining, pressure testing, dimension checking, painting & packing.
