1" 2500LB check valve is made according to ASME B16.34 standard. The valve body is made of F316L. It has the structural characteristics of lifting type, pressure self-sealing, conventional diameter. Its connection mode is FNPT.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A182 F316LProduct Description
|
Type |
Lift Check Valve |
|
Size |
1" |
|
Pressure |
2500LB |
|
Connection |
FNPT |
|
Body Material |
A182 F316L |
|
Design Norm |
ASME B16.34 |
|
Screwed Ends Dimension |
ASME B1.20.1 |
|
Test & Inspection Code |
API 598 |
|
Temperature |
-29 ~ 38°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Clean the valve before installation and eliminate the defects caused during transportation;
2. Do not load the check valve in the pipeline.

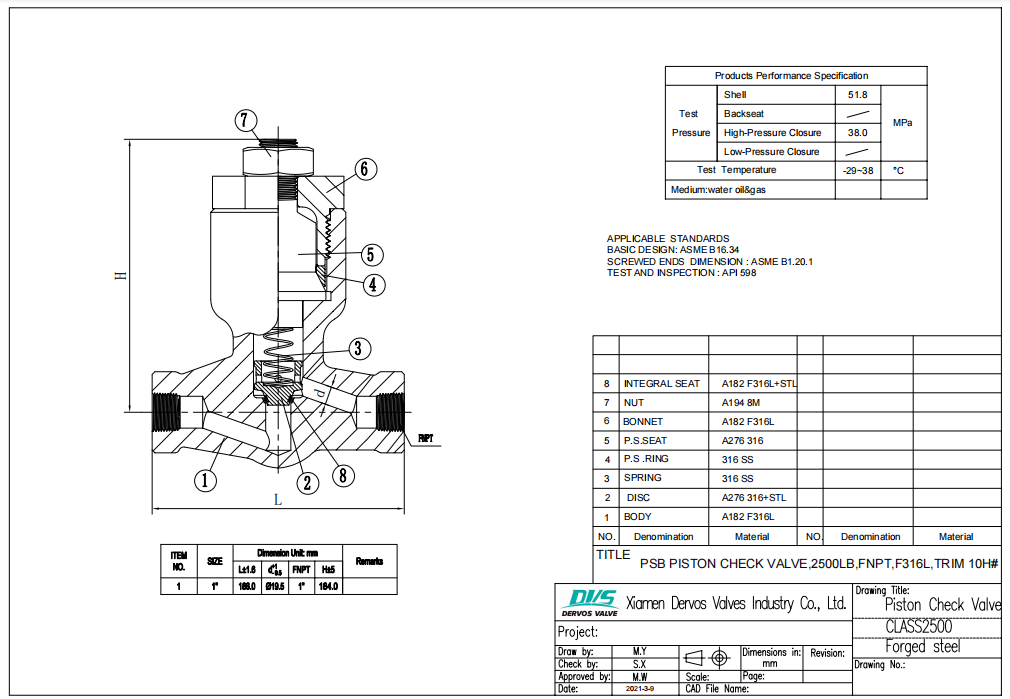

Technical Drawing

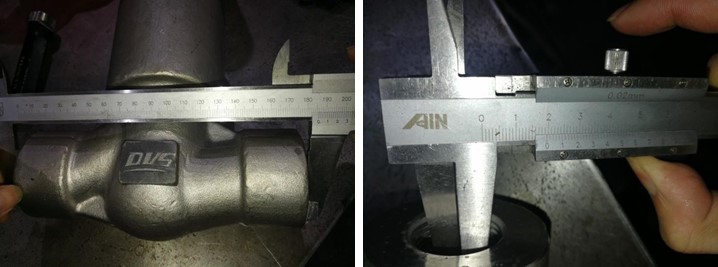

Dimension Checking

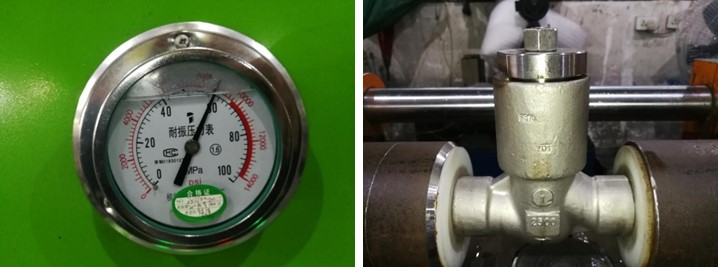

Pressure Testing

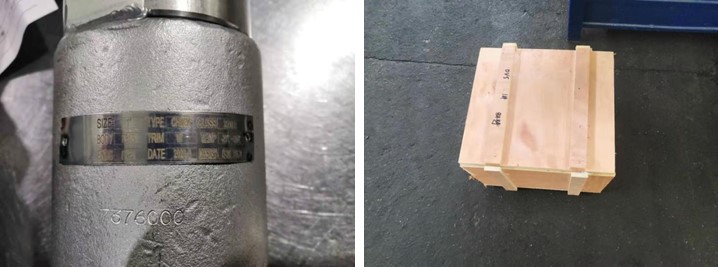

Nameplate & Packing

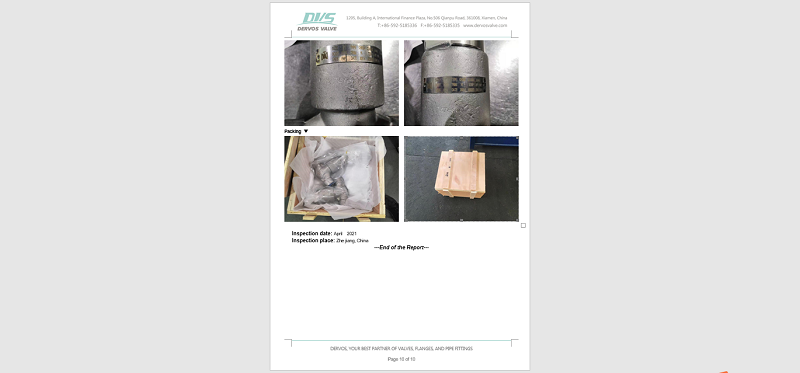

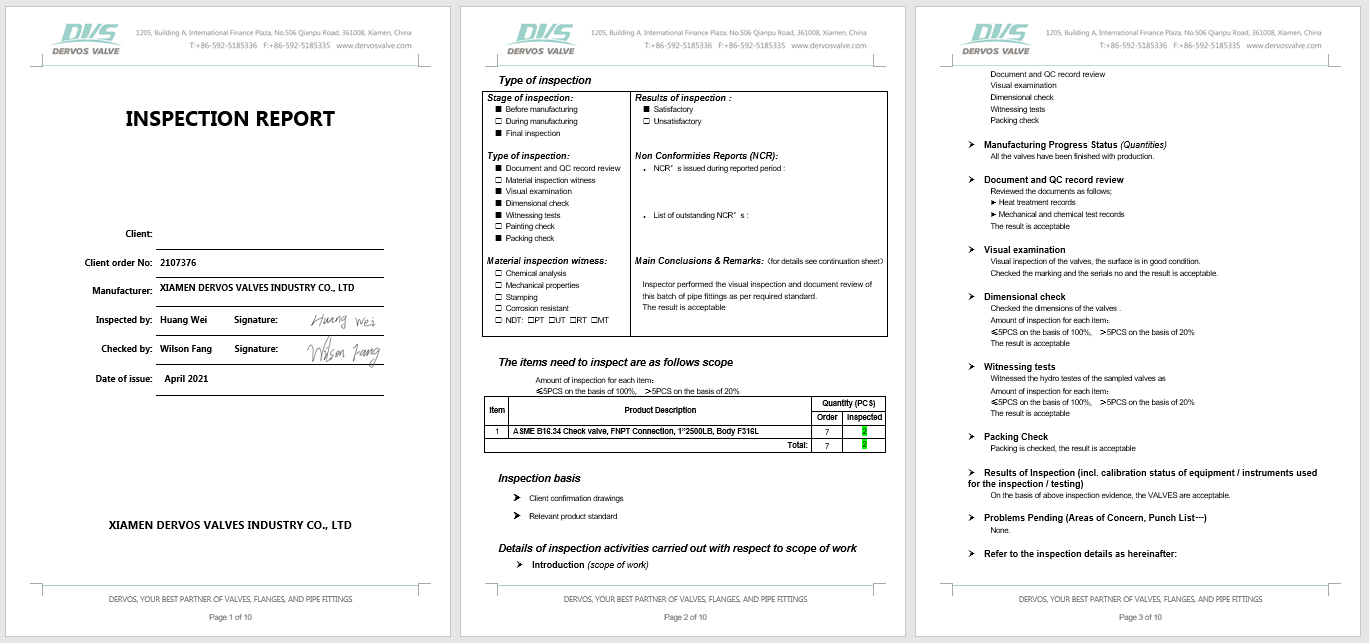

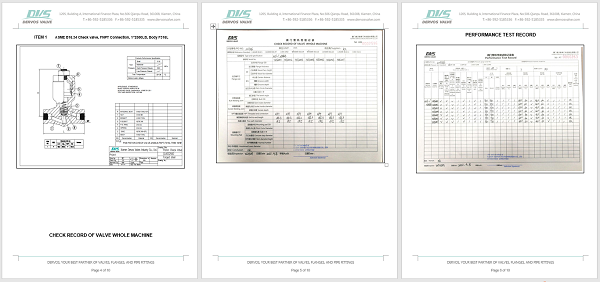

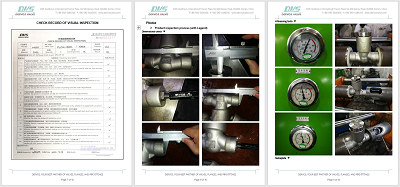

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
The cast steel lift non return check valve is designed with piston type disc, bolted bonnet, and PN16 RF flange. The spring loaded check valve conforms to DIN 3356. Quick Detail Type Check Valve ( Non-return Valve) Nominal Diameter DN 150 NominalPressure PN 16 Construction Lift Type / Piston Type, Bolted Bonnet Connection Flanged Connection Design & Manufacture DIN 3356 End to End EN 558 Connection EN 1092 Test & Inspection EN 12266 Body Material Carbon Steel GS C25 Media W.O.G. Product Range Body material: CS, SS, Alloy Steel, CI, Bronze, Brass Size Range: 2”~12” (DN50~DN300) End Type: Butt Weld, Socket Weld, Flanged, Screwed Pressure Range: 150lbs~2500lbs (PN16~PN420) Temperature Range: -46℃~ +425℃ Related Knowledge What is a piston check valve? Usually, we have swing type check valve and lift type check valve. A piston check valve and ball check valve both belong to lift type check valve. In a lot of cases, a piston check valve use spring to retain the disc in closed position. The structure of a piston check valve is very similar to the globe valve just without manual operation. Due to its piston type disc and superior leak tight characteristic, the piston check valves are suitable for small size and high pressure conditions.
The forged steel lift check valve is designed with class 150 pressure and 1 inch nominal size according to standard API 602. We also call it as piston check valve. Quick Detail Type Check Valve Size 1'' DesignPressure 150LB Construction Lift Type, Piston Type Connection RF Flange Design & Manufacture API 602 End to End ASME B16.10 Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material ASTM A105N Trim Material Trim 5 Temp Range -29℃~+425℃ Media W.O.G. Dimension Checking Pressure Tesing Packing
Due to its simple flow efficient and virtually maintenance-free design, thestainless steel ball checkvalve is commonly specified and used in submersible waste water lift stations.
This spring loaded check valve, made according to DIN3840, requires no gravity or backflow pressure to work or actuate.It’s body material 1.0619 enable the valve to work under great heat and It’s spring can accommodate a wide range of temperature, too.
Chinese Valve manufacturer Dervos supplies Check Valve that featured with through conduit, plug type disc and replaceable seat. Expect these 14 inch 150LB check valve, other types valves of different materials, sizes are also available.
The DN50 PN160 spring loaded lift check valve, made of Cast Steel, is powered by flow and differential pressure with assistance from spring pressure. And it requests no human intervention is required to function, easy to use.
The stainless steel non return valve features in non slam type disc, INCONEL X750 spring, WCB valve body. This valve owns an excellent dynamic performance and minimizes vibrations and noise.
2" 600LB check valve is made according to BS1868 standard. The valve body is made of A216 WCB. It has the structural characteristics of lifting type, bolt cover and body valve seat. Its connection mode is RF.
DN100 PN16 check valve is made according to EN12516-1 standard. The valve body is made of ASTM A216 WCB+STL. It has the structural characteristics of lifting type with spring. Its connection mode is EN1092-1 B.
The high performance butterfly valve is designed with double eccentric or double offset structure. The valve has cast steel WCB body, stainless steel disc and stem along with RPTFE soft seat. Quick Detail Type Butterfly Valve Nominal Size 6 Inch Nominal Pressure Class 150 Structure Double Offset, Double Eccentric, Soft Seat Connection Type Lug Type Operation Gear Operated Design Code API 609 Face to Face ASME B16.10 End Connection ASME 16.5 Test & Inspection API 598 Body Material Cast Steel WCB Trim Material CF8M Disc, 17-4PH Stem, RPTFE Seat Application Water, Oil, Gas Dervos Inspection Report
The double- disc check valve, made of CF8 stainless steel, has excellent resistance to corrosion. Designed in accordance with DIN 3202, the check valve is about to connect to pipes with WAFER. Quick Detail Type Check Valve Nominal Diameter DN100 NominalPressure PN25 Construction Double disc/ Dual Plate Connection Wafer Type Design & Manufacture DIN 3202 End to End DIN 3202 Flange End Dimension DIN 2401 Test & Inspection API 598 Temperature Range -29℃~+425℃ Body Material A351 CF8 Wedge Material A351 CF8 Media W.O.G. Dervos Packaging Good packing means good first impression. Just imagine how do you feel differently when seeing two boxes below? And you will know the reason why in Dervos we value packaging so much. In Dervos, we make sure- 1. Every valve isclean and dry. What do we do? -Clean the valve before packing -Add anti-rust oil -Add flange cover 2. No damageto valves in delivery. How do we achieve this? -Fix the valve with iron wire -Separate the valve with soft material -Layer the valve with plywood 3. Strong box and clear shipping mark
The 6 Inch PSB globe valve has 1500LB design pressure, butt weld end, and gearbox. The full bore globe valve is made of carbon steel WCB body and trim 5 material. Quick Detail Type Globe Valve Size 6'' Design Pressure Class 1500 Construction Pressure Seal Bonnet, Plug Type Disc, Rising Stem Connection Type Butt Weld Operation Type Bevel Gearbox Opearted Design Code BS 1873 End to End ASME B16.10 Connection End ASME B16.25 Pressure & Temperature ASME B16.34 Test & Inspection Standard API 598 Body Material Cast Steel WCB Trim Material Trim NO. 5 Temperature Range -29℃~+425℃ Application WOG Origin China Material & Dimension NPS DN Class 2 2 1/2 3 4 6 8 50 65 80 100 150 200 L(RF) L1(BW) 900LB 368 419 381 457 610 737 1500LB 368 419 470 546 705 832 2500LB 451 508 578 673 917 1022 L2(RTJ) 900LB 371 422 384 460 613 740 1500LB 371 422 473 549 711 841 2500LB 454 514 584 683 927 1038 H(Opne) 900LB 550 605 678 798 930 1230 1500LB 550 605 866 956 1260 1263 2500LB 560 720 755 1230 1791 2086 W 900LB 350 350 400 450 458 610* 1500LB 400 400 450 560 610* 610* 2500LB 400 450 560 310* 610* 760 Weight (RF) 900LB 78 108 102 142 400 960 1500LB 85 110 135 230 660 1590 2500LB 140 168 247 620 1500 3200 Weight (BW) 900LB 66 91 87 128 355 868 1500LB 77 101 122 209 595 1440 2500LB 100 118 180 438 1148 2594 *Manual gear operator is recommended No Part Name Carbon steel to ASTM Alloy steel to ASTM Stainless steel to ASTM WCB WC6 WC9 C5 CF8 CF8M CF3 CF3M 1 Body A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 2 Seat Ring A105 A182 F11 A182 F22 A182 F5 A182 F304 A182 F316 A182 F304L A182 F316L 3 Disc A105 A182 F11 A182 F22 A182 F5 A182 F304 A182 F316 A182 F304L A182 F316L 4 Stem A182 F6 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 5 Disc nut A182 F6 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 6 Cap SS Spiral Wound graphite or SS Spiral Wound PTFE 7 Body Seal Flexible Graphite+316 8 Adjustment Gasket F6 F6 F316 9 Stem packing Flexible Graphite+316 10 Gland Nut A194 2H A194 8 11 Gland Eyebolt A193 B7 A193 B8 12 Pin Carbon steel or Stainless Steel 13 Cap Nut Carbon steel or Stainless Steel 14 Gland A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 15 Gland Flange A216 WCB A351 CF8 16 Yoke A216 WCB A351 CF8 17 Stem Nut A439 D2 or B148-952A 18 Screw Carbon steel 19 Handwheel Ductile Iron or carbon steel 20 Name Plate Stainless steel or Aluminum 21 Washer Carbon steel 22 Nut Carbon steel or Stainless Steel Related Knowledge Why do we use pressure seal bonnet? Pressure sealed bonnet are often used for valves with high design pressure. The higher the internal pressure gets, the greater the sealing force beween body and bonnet become. For bolted bonnet valves, the body and bonnet are joined by studs and nuts with a gasket between the flange faces to facilitate sealing. However,as system pressure increases,the potential for leakage through the body and bonnet increases. But for pressure sealed valve, “bonnet take-up bolts” to pull the bonnet up and seal against the pressure seal gasket. That is why when pressure increase, the performance of pressure seal gasket between body and bonnet becomes better.
