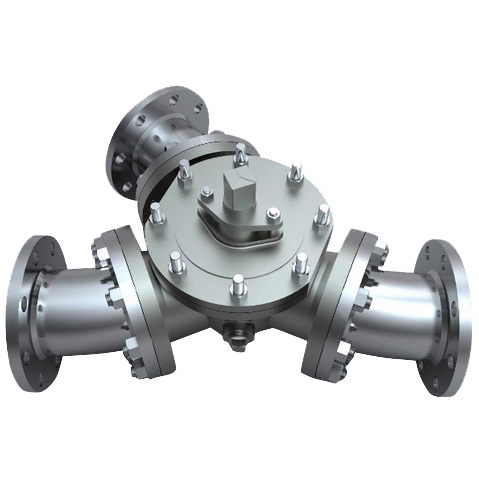

Y-type ball valves have gained popularity in industrial pipeline systems due to their unique Y-shaped structure and excellent fluid control performance. They are designed to reduce fluid resistance and improve flow efficiency, making them well-suited for specific applications.

1. Situations that require low flow resistance and high flow rates:

①High-flow pipeline systems:

The Y-shaped design of the ball valve significantly reduces the resistance as fluid passes through the valve, making it suitable for pipelines that require high-flow control. This design ensures smooth and efficient fluid flow, reducing energy consumption.

②Applications with low pressure drop requirements:

In systems sensitive to pressure drop, the low flow resistance characteristics of Y-type ball valves effectively reduce pressure losses in the system, ensuring overall pipeline efficiency. For example, in long-distance transportation pipelines and process flows that require specific pressure maintenance, Y-type ball valves are an ideal choice.

2. Handling high viscosity and media with particles:

①High-viscosity fluids:

Y-type ball valves can handle high-viscosity fluids, avoiding excessive flow resistance within the valve. This makes them suitable for the transportation and control of high-viscosity media such as oils, syrups, and slurries.

②Media with particles:

Due to their smooth and spacious flow passages, Y-type ball valves effectively prevent particle accumulation and blockages when handling fluids with particles. They are suitable for transporting media such as mud and wastewater.

3. Situations that require frequent operation and adjustment:

①High-frequency opening and closing operations:

The design of Y-type ball valves allows them to perform well in frequent opening and closing operations, providing reliable sealing performance and long service life. In situations that require frequent operations, such as flow and direction control, Y-type ball valves are a reliable choice.

②Precise flow control:

The flow passage design of Y-type ball valves enables precise flow control, making them suitable for process flows that require fine control of flow rates, such as chemical reactions and pharmaceutical production processes.

4. Installation environments with limited space:

Y-type ball valves have a compact structure and occupy minimal space, making them suitable for installation in limited spaces. Whether it is inside equipment, dense pipeline areas, or systems that require high-density installation, Y-type ball valves can adapt flexibly.

5. Systems that require high fluid cleanliness:

The design of Y-type ball valves ensures smooth flow passages that are not prone to impurity accumulation, making them easy to clean and maintain. In industries with high requirements for fluid cleanliness, such as pharmaceuticals, food, and beverages, Y-type ball valves are an ideal choice.

6. Cost control and ease of maintenance requirements:

Due to their low flow resistance design, Y-type ball valves can improve system efficiency, reduce energy consumption, and lower operating costs. Their simple structure, fewer components, and easy maintenance and repair further reduce maintenance costs.

7. Typical application scenarios:

①Petroleum and gas industry:

Used for the transportation and control of high-flow media such as oil and gas, ensuring the efficient operation of pipeline systems.

②Chemical industry:

Used to handle high-viscosity and particle-containing chemical media, ensuring process stability and safety.

③Water treatment industry:

Used in municipal and industrial water treatment systems to control water flow and pressure and improve water treatment effectiveness.

④Power industry:

Y-type ball valves provide reliable performance in controlling the flow of media such as steam and water in power plants, ensuring continuous and stable power production.

⑤Pharmaceutical and food industry:

Used for the transportation and control of pure media in pharmaceutical and food production, meeting high cleanliness and pollution-free requirements.
