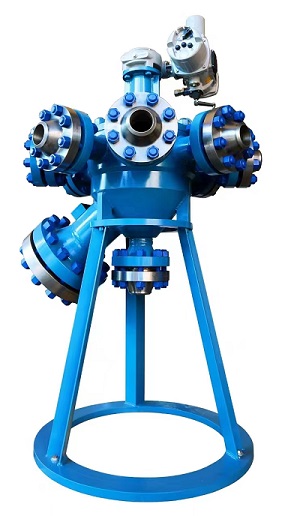

The Numerical Control Multi-Pass Valve plays a crucial role in automating well selection and metering within oilfield metering stations.

It replaces multiple metering pipe manifolds and electrically actuated three-way valve assemblies, streamlining well selection. Operated through control system automation or manual actuation, it enables automatic well switching, offering benefits like a compact footprint, streamlined operation, unmanned capability, and simplified installation. It can also be customized for specific needs, making it ideal for modernizing aging oil and gas metering stations on offshore platforms, artificial islands, and remote onshore areas.

Features

1. Media Versatility: The valve handles various mediums, including light crude, heavy crude, oil-contaminated water, and clear water.

2. Simplified Operation: Streamlined control through a single multi-pass valve eliminates complex adjustments.

3. Cost-Effective: Fewer control units lead to investment savings of 20% to 30% compared to conventional systems.

4. High Sealing Performance: Self-compensating sealing and snug integration ensure zero leakage, supported by manual adjustments for maintenance.

5. Precision Engineering: Advanced positioning technologies enable near error-free well selection.

6. Durability and Efficiency: The hard-faced alloy sealing surface resists erosion, scaling, and extends service life.

7. Optimal Pressure Management: The system maintains a maximum pressure loss below 0.025 MPa.
