In industrial pipeline systems, the wafer check valve plays a key role in preventing backflow and is widely used in various fluid control systems.

It is favored by many engineers and designers for its compact, lightweight, and easy-to-install characteristics. In practical applications, many consider installing the wafer check valve vertically to accommodate different pipeline layouts and space requirements. So, can wafer check valves be installed vertically? If so, how can their performance and safety be ensured? This article will explore the feasibility of vertical installation of wafer check valves and share some installation guidelines and precautions.

1. Working Principle and Application Scope of Wafer Check Valves

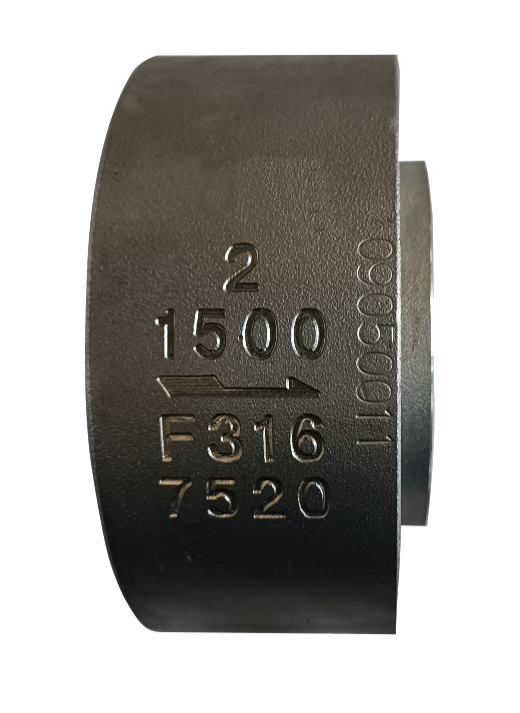

A wafer check valve is an automatically opening and closing valve primarily used to prevent backflow of fluids. The valve disc is pushed open when the fluid flows in the forward direction, and it closes by gravity or spring action when the fluid stops or reverses. Unlike traditional swing check valves, wafer check valves typically feature a more compact design, allowing them to be directly sandwiched between pipeline flanges, saving installation space. In typical pipeline systems, the most common installation method for wafer check valves is horizontal installation, as this configuration is the most stable and convenient for maintenance. However, in certain special installation environments, such as tight spaces or specific operating conditions, vertical installation can also be a viable option.

2. Can Wafer Check Valves Be Installed Vertically?

In theory, vertical installation of a wafer check valve is feasible, but several important factors should be considered:

· Gravity Effect on the Valve Disc

The design of the wafer check valve relies on the gravity of the valve disc to close the valve. In horizontal installation, the valve disc naturally falls to ensure a proper seal. However, in a vertical installation, the valve disc may not close naturally due to gravity, especially in upward flow situations. Therefore, it is crucial to ensure that the design of the valve disc and the configuration of the spring are suitable for vertical installation, allowing the valve to close effectively without external interference.

· Fluid Flow Direction

The direction of fluid flow in a wafer check valve directly impacts its performance. When installed vertically, the flow direction may change, potentially leading to unstable opening or closing of the valve disc. To ensure that the valve disc closes at the right time, it is recommended to check whether the valve has a reliable anti-backflow design, ensuring it can function properly even in vertical installation.

· Installation Space and Maintenance Accessibility

Vertical installation of a wafer check valve may require more space, particularly if there is a need to maintain a certain distance from other equipment in the pipeline system to allow the valve to open and close smoothly. Additionally, vertical installation can make maintenance more challenging, especially for larger valves. Therefore, it is essential to consider the installation location and future maintenance feasibility during the design phase.

3. Best Guide for Vertical Installation of Wafer Check Valves

· Ensure the Valve Disc Closes Properly

When installing a wafer check valve vertically, ensuring that the valve disc closes smoothly is crucial. It is recommended to choose a wafer check valve with a spring-assisted closing design, so that even in vertical installations, the valve disc can close quickly with the help of the spring, preventing backflow.

· Consider Flow Rate and Pressure in the Pipeline

In vertical installation, changes in the fluid's flow rate and pressure may affect the valve's performance. To avoid situations where the valve disc cannot close in time due to excessive flow, it is advisable to select a wafer check valve suitable for high-flow or special operating conditions. Also, the viscosity of the fluid should be considered to ensure the valve disc moves smoothly under all conditions.

· Strictly Follow Installation Direction Requirements

Whether installed horizontally or vertically, the wafer check valve must be installed according to the correct flow direction. Incorrect installation direction may prevent the valve from functioning properly and could damage the system. Therefore, always carefully read the installation instructions in the valve manual to ensure that the fluid flow direction matches the valve's indicated direction.

· Regular Inspection and Maintenance

For vertically installed wafer check valves, it is recommended to regularly check the valve's condition, especially the flexibility and sealing performance of the valve disc. Since vertical installation may expose the valve to more stress and impact, regular maintenance is essential to ensure the valve can continue to prevent backflow effectively over time.
