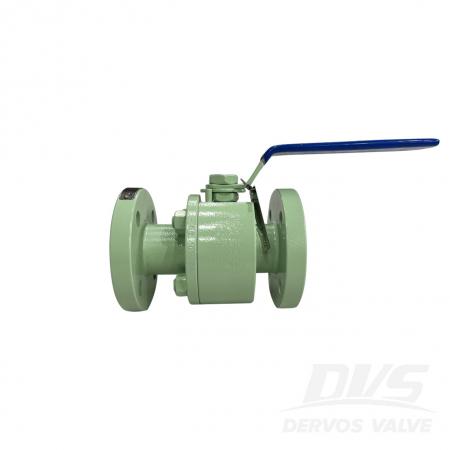

DN25 PN40 ball valve is made according to ISO17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of floating ball and full bore. Its connection mode is EN 1092-1 B1. And it has lever operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A105Method of Operation:
LeverProduct Description
Type |
Ball Valve |
Size |
DN25 |
Pressure |
PN40 |
Connection |
EN 1092-1 B1 |
Operation |
Lever |
Body Material |
ASTM A105 |
Design Norm |
ISO17292 |
Ends Connection |
RF |
Test & Inspection Code |
EN 12266 |
Connection Ends |
EN 1092-1 |
Fire Safe Design |
API 607 |
F-F Dimension |
EN 558 |
Temperature |
-29 ~ 120°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. Compact structure, reliable sealing, simple structure, and convenient maintenance;
2. Easy to operate and maintain, suitable for general working media such as water, solvents, acids, and natural gas.

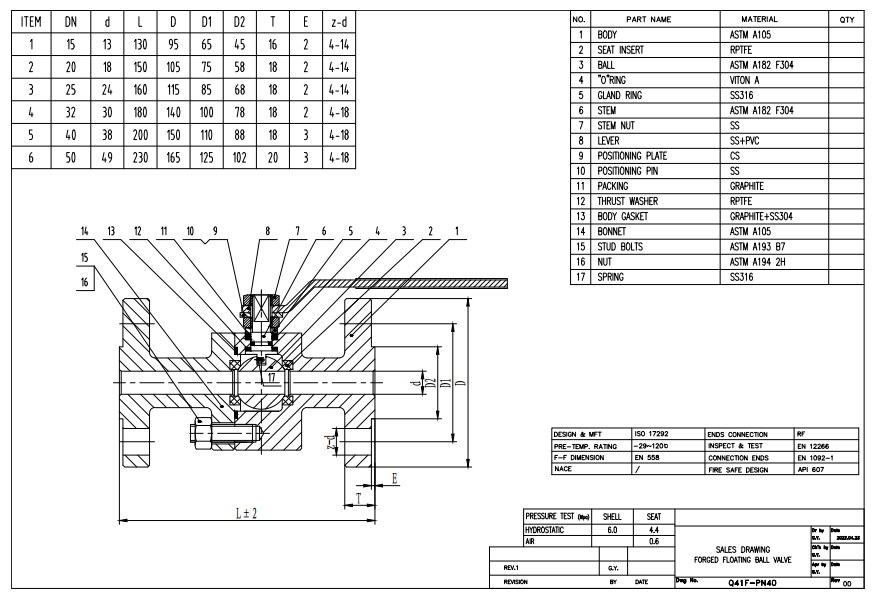

Technical Drawing

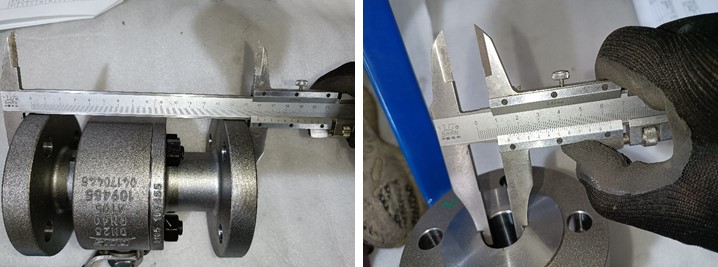

Dimension Checking

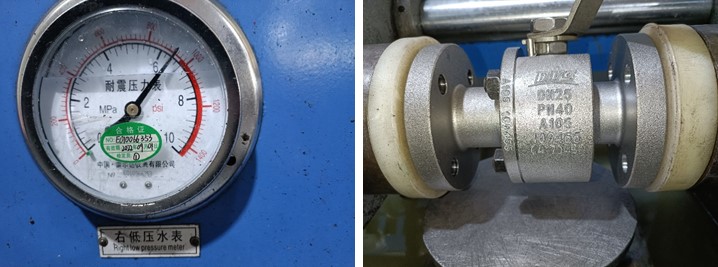

Pressure Testing

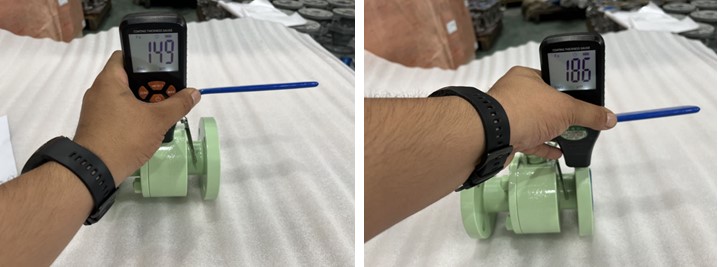

Painting

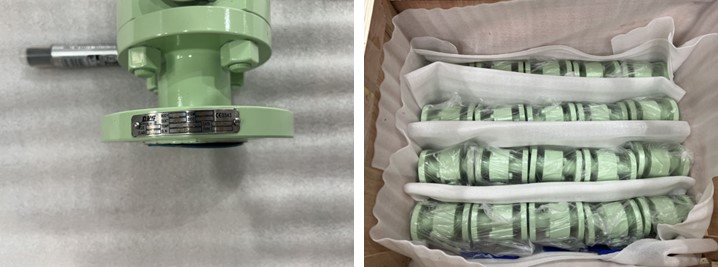

Nameplate & Packing

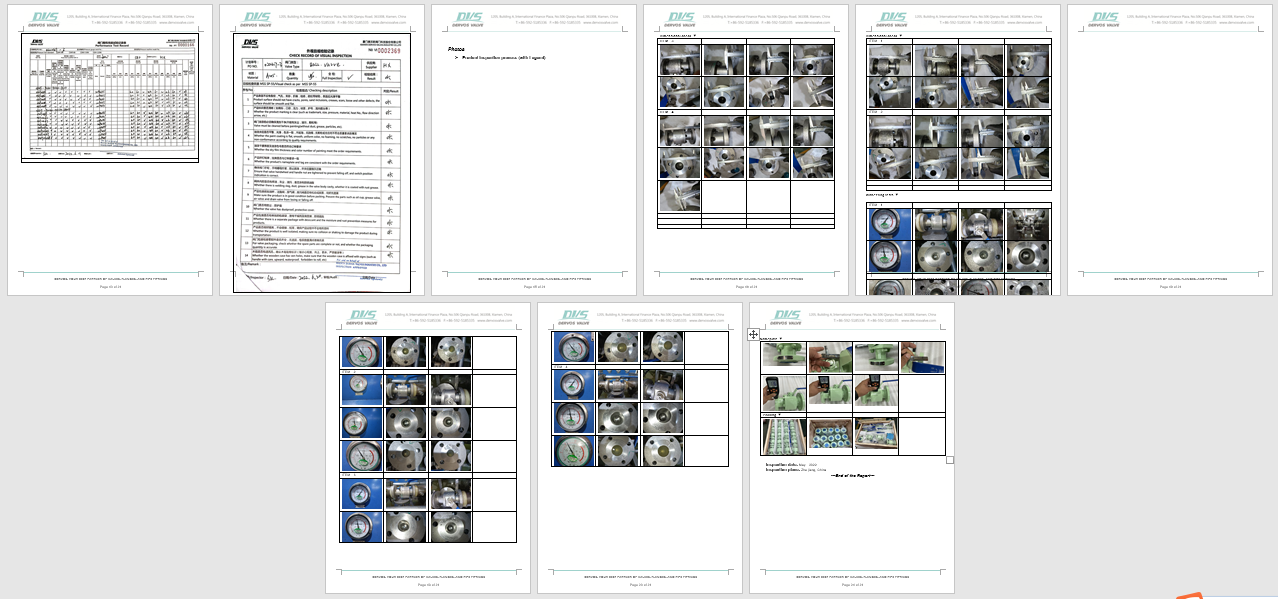

Inspection report
